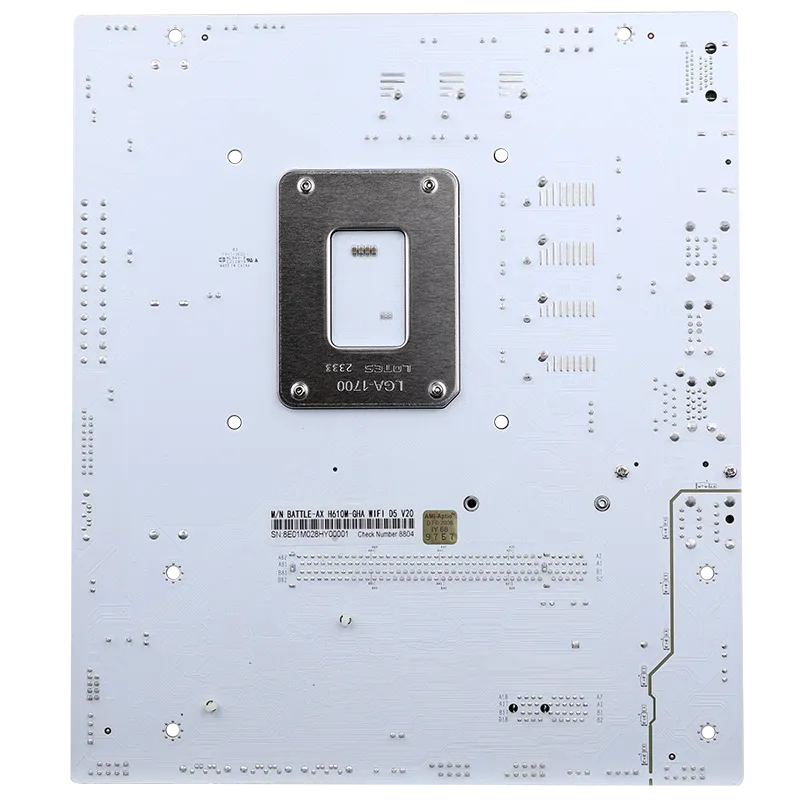

Model

BATTLE-AX H610M-GHA WIFI D5 V20

Product Series

BATTLE-AX series

Chipset

Intel H610

Processor

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Memory

2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)

Paired with 13th generation Intel ® Core ™ i9/i7 processors:

- Support DDR5-5600/5400/5200/5000/4800MHz memory

Paired with 13th generation Intel ® Core ™ i5/i3 processors and 12th generation Intel ® Core ™、Pentium ® And Cylon ® processors

- Support DDR5-4800MHz memory

- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces

- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4, PCH channel)

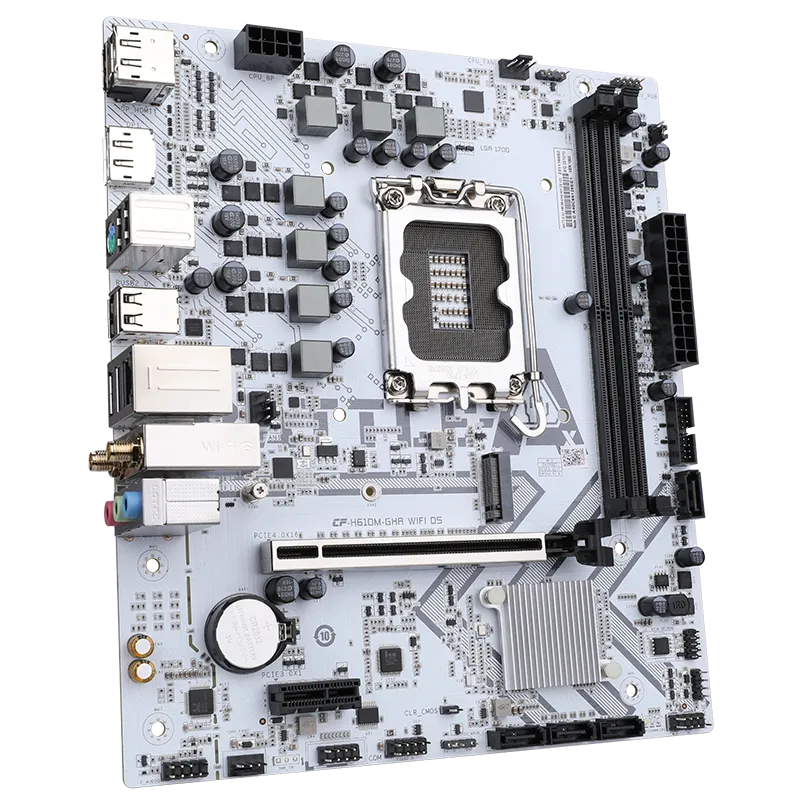

Board I/O

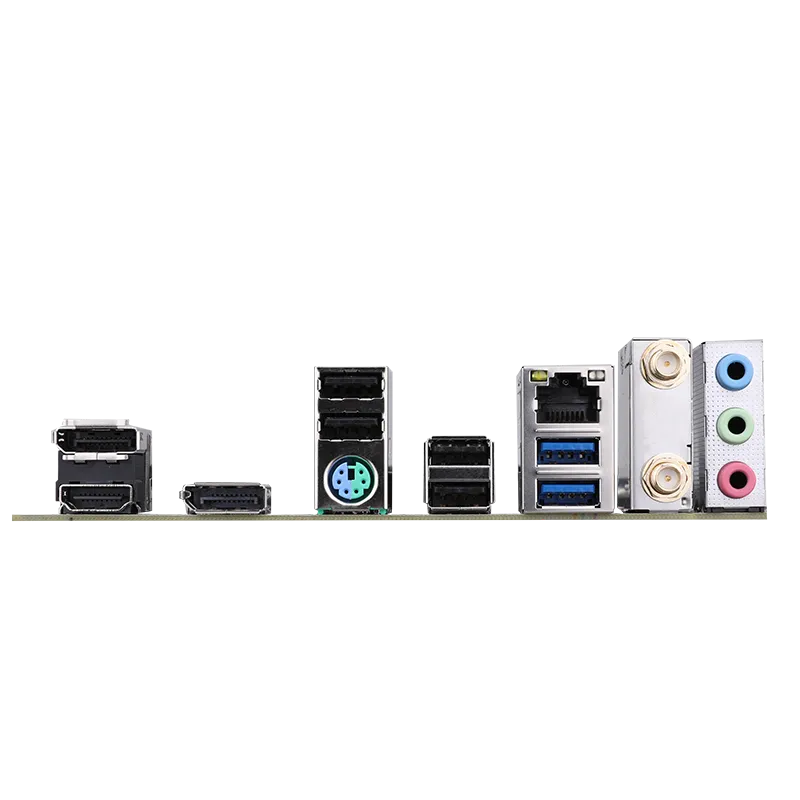

Rear I/O :

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 Type-A interfaces

-2×DP 1.2 interfaces, supports up to 4K 60Hz resolution

-1×HDMI 2.0 interface, supports up to 4K 60Hz resolution

-1×PS/2 interface

-1×2.5G network interface

-2×Wi-Fi 6 antenna interfaces

-3×Audio interfaces (audio input/audio output/microphone)

On board:

-1×CPU fan pin

-2×System fan pins

-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-2×5V 3-pin ARGB pins

-1×12V 4-pin RGB pin

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Clear CMOS jumper

-1×BIOS burner pin

-1×RGB light effect control jumper

-1×COM port pin

Expansion Slots

1×PCIe 4.0 x16 slot

1×PCIe 3.0 x1 slot

BIOS

128M UEFI, support multiple languages

Power Management

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN

RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2

Audio

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration

M-ATX

225mm x 195mm
