| Overview | ||

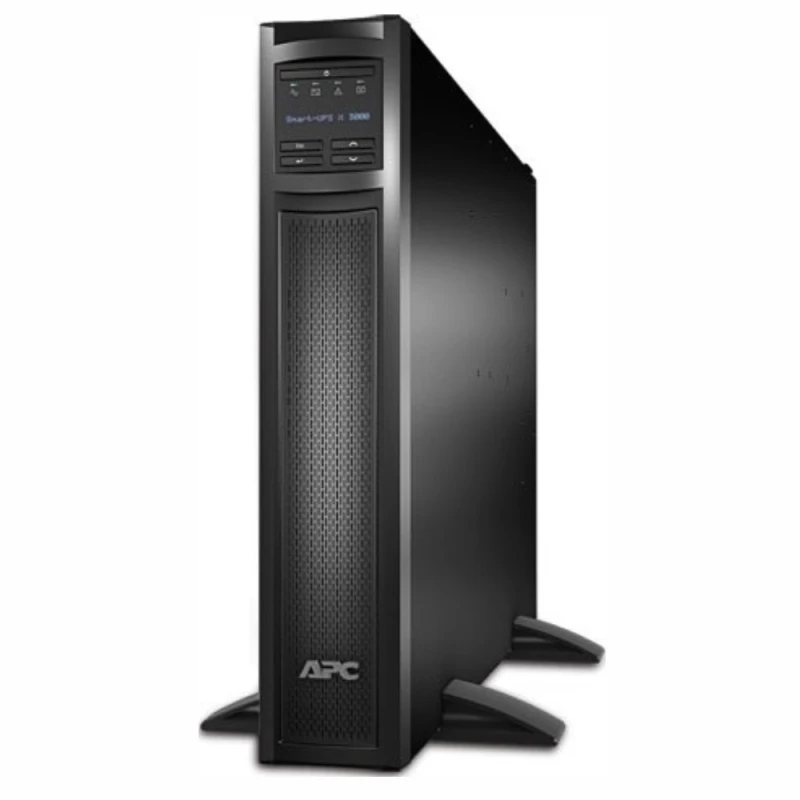

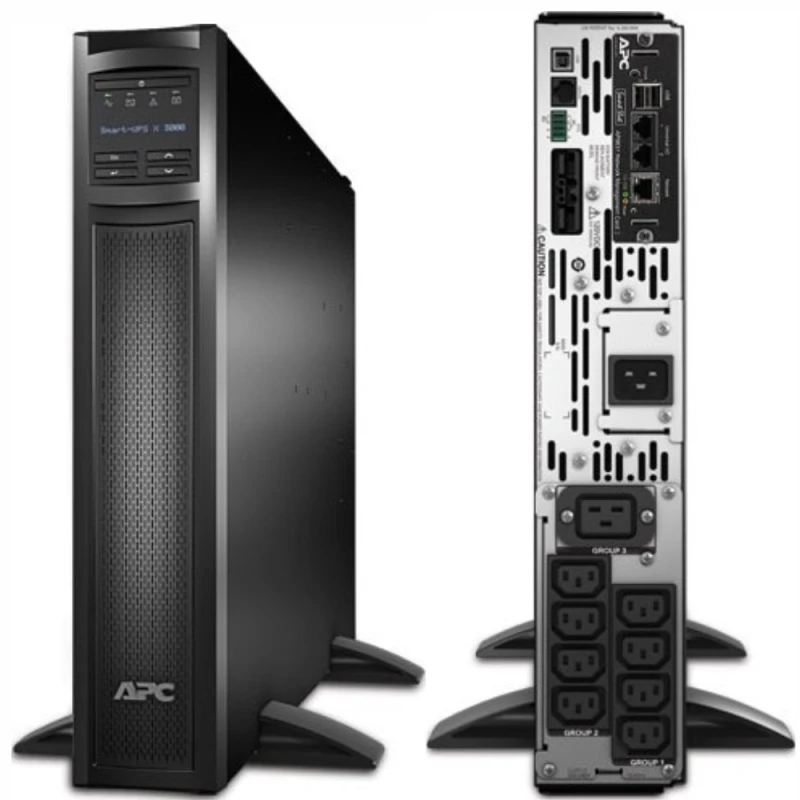

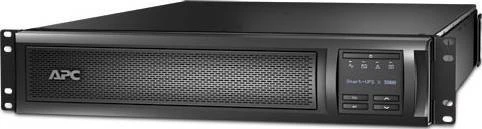

| Model Name | APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card | |
| Includes | CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , Temperature Probe , User Manual , Web/SNMP Management Card | |
| Output | ||
| Output Power Capacity | 2700 Watts / 3000 VA | |
| Max Configurable Power (Watts) | 2700 Watts / 3000 VA | |
| Nominal Output Voltage | 230V | |
| Output Voltage Distortion | Less than 5% | |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz | |
| Other Output Voltages | 208, 220, 240V | |
| Line Interactive | ||
| Waveform Type | Sine wave | |

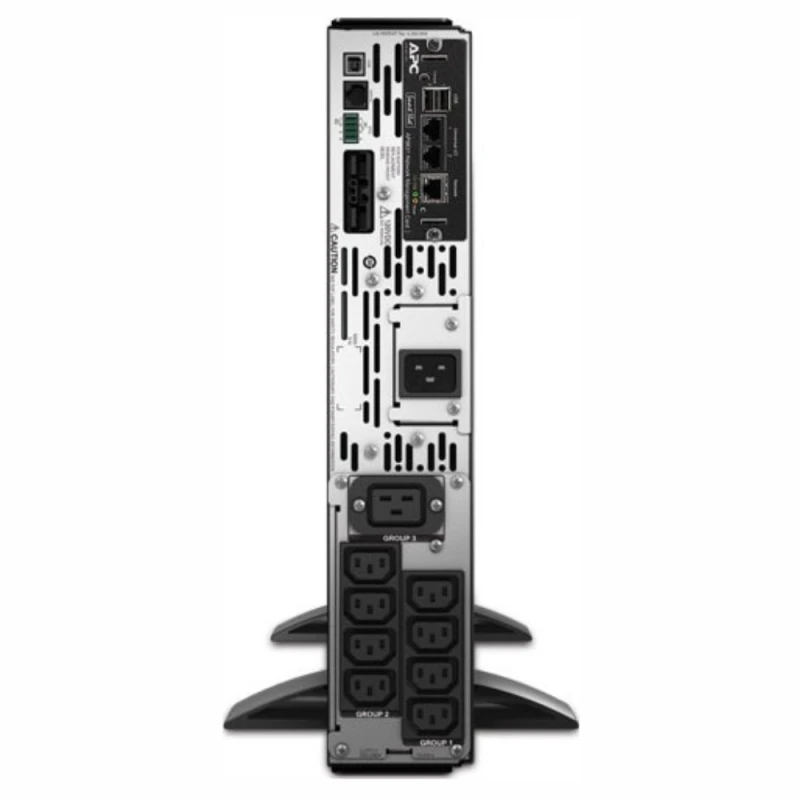

| Output Connections | (1) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup) | |
| Input | ||
| Nominal Input Voltage | 208V , 230V | |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) | |
| Input Connections | British BS1363A , IEC-320 C20 , Schuko CEE 7/EU1-16P | |
| Cord Length | 2.44 meters | |
| Input voltage range for main operations | 140 - 280 V | |
| Other Input Voltages | 220 , 240 | |
| Maximum Input Current | 0 A | |
| Input Breaker Capacity | 0 A | |
| Batteries & Runtime | ||
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof | |
| Included Battery Modules | 0 | |
| Battery Slots Empty | 0 | |
| Typical recharge time | 3 hour(s) | |
| Replacement Battery | APCRBC117 | |
| RBC Quantity | 1 | |
| Communications & Management | ||
| Interface Port(s) | SmartSlot | |
| Available SmartSlot™ Interface Quantity | 0 | |
| Pre-Installed SmartSlot™ Cards | AP9631 | |
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators , Multi-function LCD status and control console | |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays | |
| Emergency Power Off (EPO) | Yes | |
| Surge Protection and Filtering | ||
| Surge energy rating | 645 Joules | |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 | |
| Data Line Protection | -- | |
| Physical | ||
| Maximum Height | 85.0 mm | |
| Maximum Width | 432.0 mm | |
| Maximum Depth | 667.0 mm | |
| Rack Height | 2 U | |
| Net Weight | 37.32 kg | |
| Shipping Weight | 45.36 kg | |
| Shipping Height | 243.0 mm | |
| Shipping Width | 596.0 mm | |
| Shipping Depth | 869.0 mm | |
| Master Carton Units | 0.0 | |
| Master Carton Weight | 0.0 lbs | |
| Color | Black | |
| Units per Pallet | 8.0 | |
| Pallet Dimensions | 1000.0 mm | |
| # of Layers per Pallet | 4 | |
| # of Units per Layer per Pallet | 2 | |
| Pallet Weight | 388.69 kg | |
| Environmental | ||
| Operating Environment | 0 - 40 °C | |
| Operating Relative Humidity | 0 - 95 % | |
| Operating Elevation | 0-3000 meters | |
| Storage Temperature | -15 - 45 °C | |
| Storage Relative Humidity | 0 - 95 % | |
| Storage Elevation | 0-15000 meters | |
| Audible noise at 1 meter from surface of unit | 55.000 dB | |
| Online Thermal Dissipation | 184.000 BTU/hr | |
| Conformance | ||
| Approvals | C-tick , CE , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , FCC Part 15 Class A , GOST , IRAM , UL 1778 , VDE | |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 year for battery , optional extended warranties available , optional on-site warranties available | |
| Sustainable Offer Status | ||
| RoHS | Compliant | |
| REACH | REACH: Contains No SVHCs | |
| Battery Directive | Compliant |
| Weight: | 46.00 kg |
| Dimensions: | 60 x 87 x 25 cm |
|
{"Specifications for APC SMX3000RMHV2UNC SMART-UPS X 3000VA RACK\/TOWER LCD 200240V WITH NETWORK CARD | SMX3000RMHV2UNC":"General","Brand":"APC","Model":"SMX3000RMHV2UNC" |
