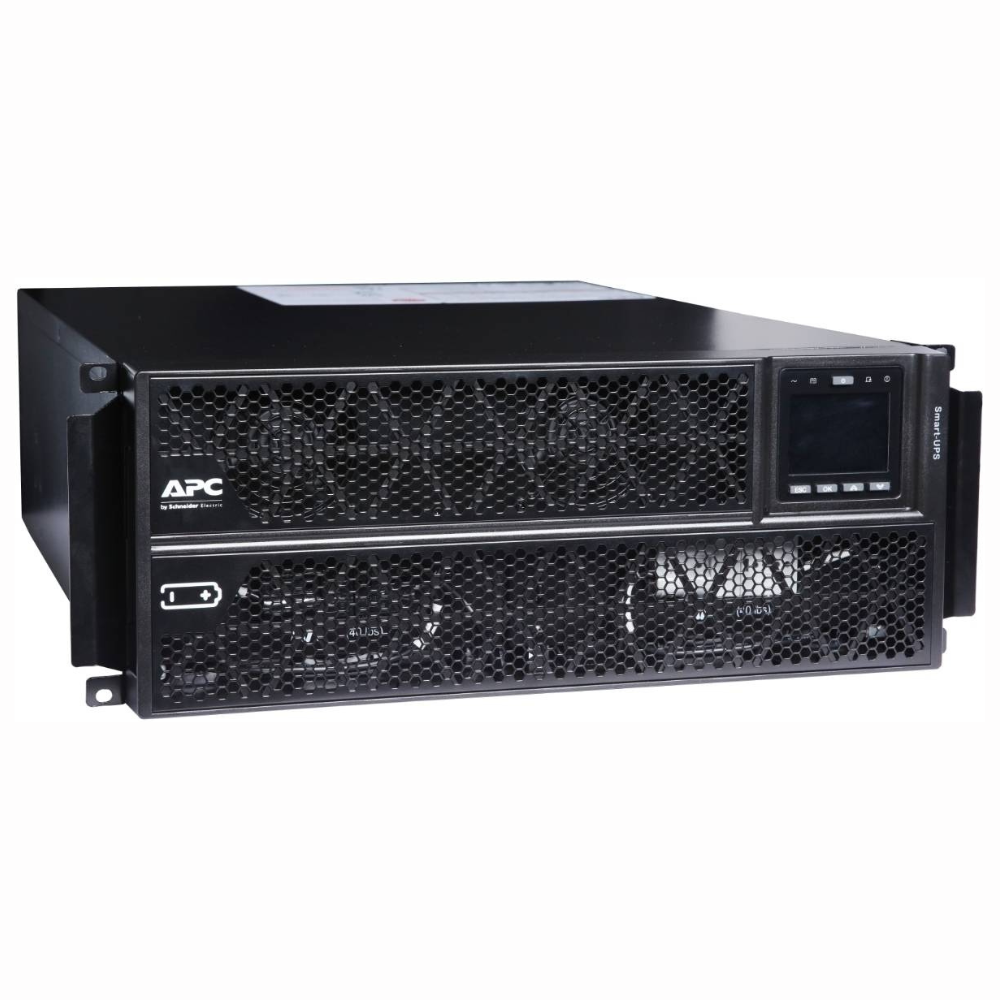

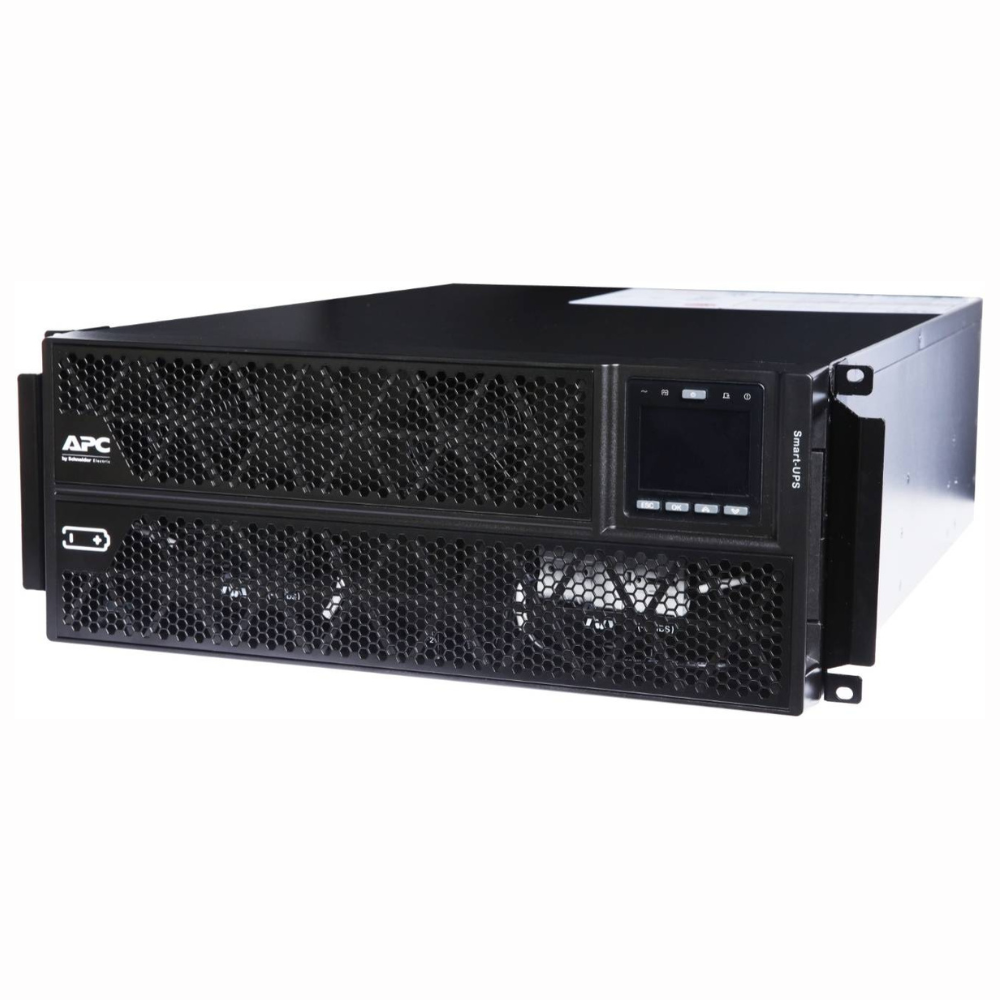

APC Smart-UPS RT SRTG6KXLI, 6 kVA/6 kW, 230V Input, Rack Mountable, Lead-Acid Battery, 2x IEC C13 + 1x IEC C19, 239W Charger, 1 Extended Runtime, Black

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

6000 W

rated power in VA

6000 VA

output connection type

2 IEC 60320 C13

1 IEC 60320 C19

Output connector type

Hard wire 3-wire (1P + N + E) 1

Number of rack unit

4U

Provided equipment

1 x USB cable

1 x RJ45 cable

1 x rack mounting brackets

1 x stabilization/wall mounting feet

1 x installation manual

1 x C13-C14 power cord

Range of product

Smart-UPS On-Line

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

+/- 96 V

Extended runtime

1

Number of battery filled slots

2

Number of battery free slots

0

Battery recharge time

4 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

APCRBC170

Battery charger power

239 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

UPS type

Double conversion online

Physical

Colour

Black (RAL 9005)

Height

17.5 cm

Width

44 cm

Depth

62 cm

Net weight

55.9 kg

Mounting preference

Lower

Mounting mode

Rack-mounted with kit

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Input

Maximum input current

30 A

Switching current capacity

40 A

Input voltage limits

160...285 V full load

100...285 V half load

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Network frequency

40...70 Hz auto-sensing

Output

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

6000 VA

Maximum configurable power in W

6000 W

Wave type

Sine wave

Efficiency

93.5 %

Output frequency

50/60 Hz +/- 4 Hz sync to mains

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Conformance

Product certifications

CE

UKCA

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

55 dBA

Heat dissipation

1330.74 Btu/h

Operating altitude

0...3000 m

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Communications & Management

Emergency power off

Yes

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate

600 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

27.5 cm

Package 1 Width

79 cm

Package 1 Length

59 cm

Package 1 Weight

61.8 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
