Main Input Voltage

230 V

Product or component type

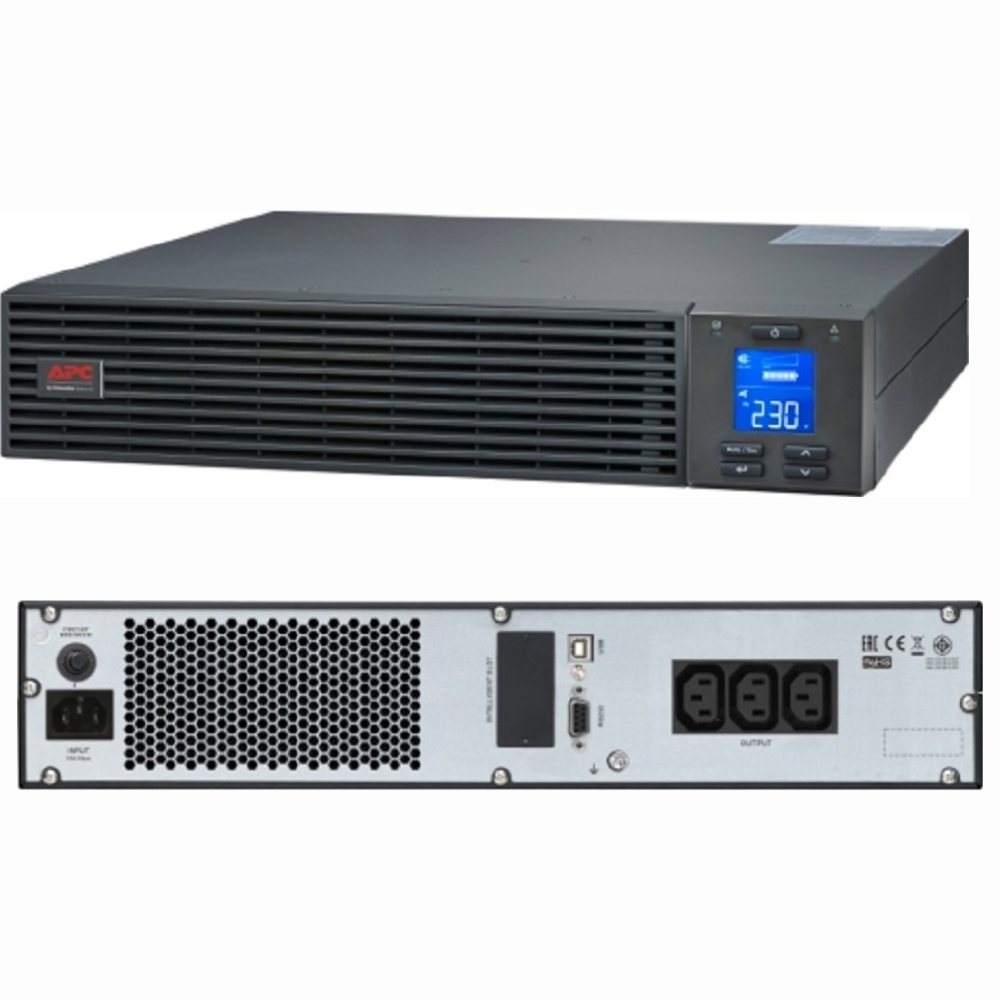

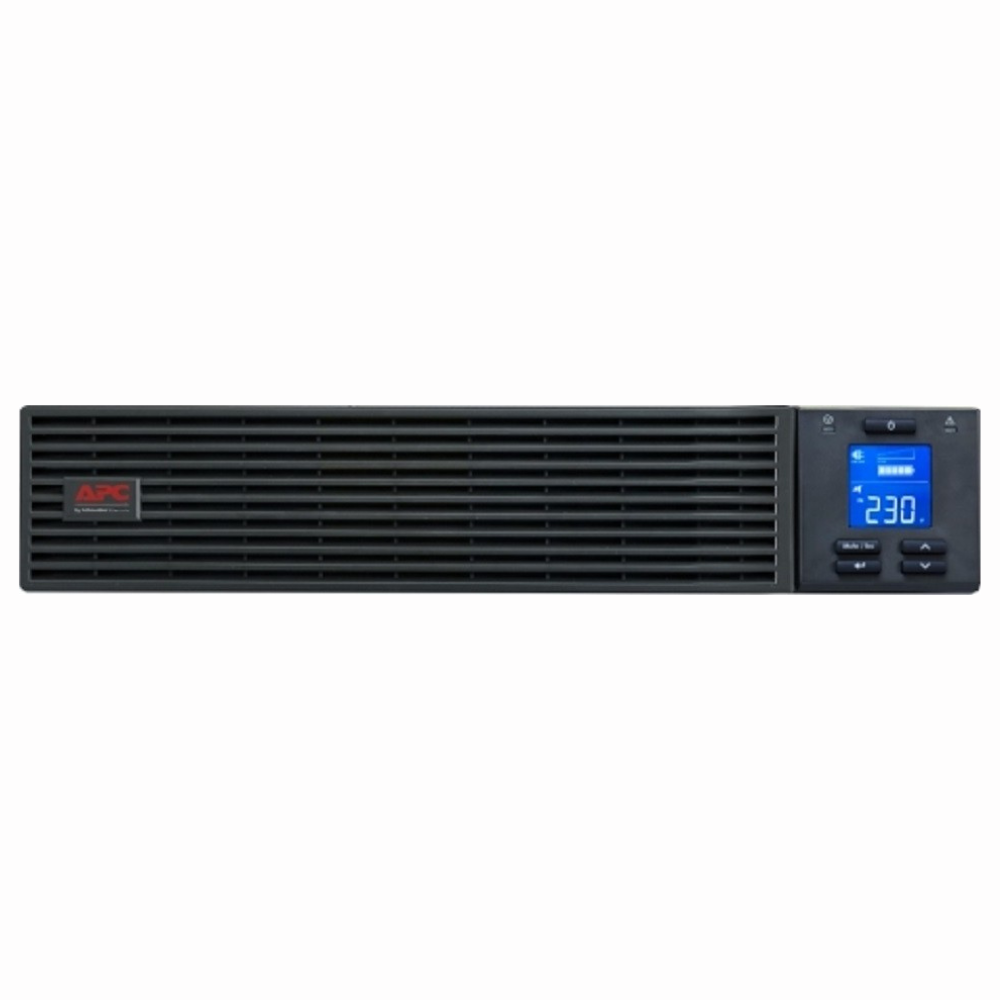

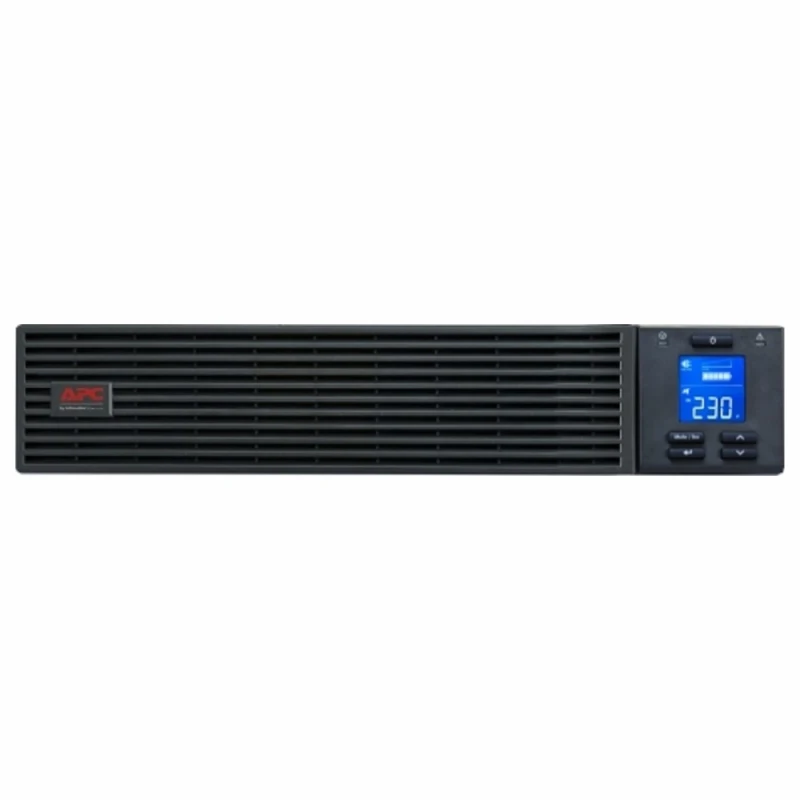

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

800 W

Rated power in VA

1000 VA

Input Connection Type

IEC 60320 C14

output connection type

3 IEC 60320 C13

Number of rack unit

2U

Cable length

1.50 m

Number of cables

1

Provided equipment

1 IEC 60320 C13 to Schuko power cable

1 IEC 60320 C13 to C14 power cable

1 USB cable

1 RS-232 configuration cable

1 rack mounting brackets

1 rack mounting support rails

user manual

Range of product

Easy UPS On-Line

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

24 V

Extended runtime

0

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

4 h

Battery life

3…5 year(s)

Replacement battery

APCRBCV200

Battery charger power

30 W rated

General

Max runtime

4 min

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Physical

Colour

Black (RAL 7010)

Height

8.6 cm

Width

43.7 cm

Depth

31.2 cm

Product weight

11 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

110...285 V half load

160...280 V full load

Network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

1000 VA

Maximum configurable power in W

800 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

3 %

UPS type

Double conversion online

Wave type

Sine wave

Efficiency

88 % (full load)

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Conformance

Product certifications

CE

EAC

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-20…50 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…15000 m

Acoustic level

50 dBA

Heat dissipation

372 Btu/h

IP degree of protection

IP20

Communications & Management

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Free slots

1

control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rate

600 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

21.8 cm

Package 1 Width

70 cm

Package 1 Length

55 cm

Package 1 Weight

13.1 kg

Contractual warranty

Warranty

2 years repair or replace

Show less specifications
