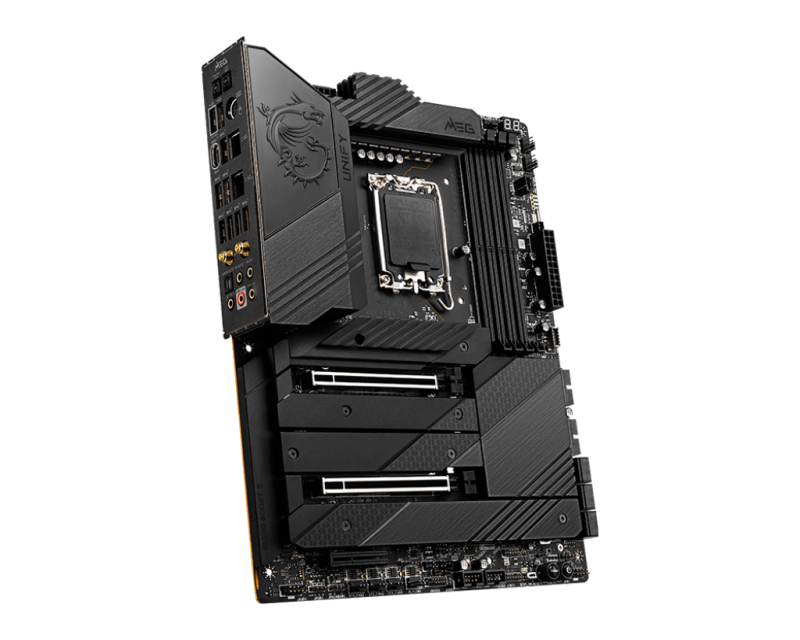

MSI M/B MEG Z690 Unify/911-7D28-001

The World Record Breaker

– MEG Motherboard

Apr / 2022

MEG Z690 UNIFY-X

i9 12900KS World Record => 7450.62 MHz

Nov / 2021

MEG Z690 UNIFY-X

KINGSTON FURY BEAST DDR5 => 8670 MHz

Aug / 2021

MEG X570S UNIFY-X MAX

R7 5700G World Record => 6024 MHz

Apr / 2021

MEG Z590 UNIFY-X

KINGSTON HYPERX PREDATOR DDR4 => 7200 MHz

Mar / 2021

MEG Z590I UNIFY

KINGSTON HYPERX PREDATOR DDR4 => 7156 MHz

Nov / 2020

MEG X570 GODLIKE

R9 5950X World Record => 6350 MHz

Oct / 2020

MEG B550 UNIFY

R5 3600XT World Record => 6155.35 MHz

Oct / 2019

MEG Z390 GODLIKE

i9 9900KS World Record => 7478 MHz

OCT / 2019

MEG X570 GODLIKE

R9 3950X World Record => 6041 MHz

Oct / 2019

MEG X570 UNIFY

R9 3900X World Record => 5857 MHz

OCT / 2018

MEG Z390 GODLIKE

i9 9900K World Record => 7472.3 MHz

Oct / 2017

Z370 GODLIKE GAMING

i7-8700K World Record => 7405.12 MHz

Sep / 2017

X299 XPOWER GAMING AC

i9-7980XE World Record => 6140.46 MHz

June / 2015

X99A GODLIKE GAMINGCARBON

7 Overclocking Records

June / 2015

X99A GODLIKE GAMING

7 Overclocking Records

prev

next

MEG Z690 UNIFY

UNLIMITED CONNECTIVITY

Dual 2.5G LAN

Onboard dual 2.5G LAN with LAN manager deliver the best online experience without lag.

Latest Wi-Fi 6E Solution

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Lightning Gen 5 PCI-E

MSI Lightning Gen 5 PCI-E represents the bandwidth of x16 interface to 128GB/s, which is double of the speed of the previous generation.

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Front & Rear USB 20G

Lightning USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Quintuple M.2 Connectors

Onboard 5x M.2 connectors with quadruple PCIe 4.0 solution, strengthened by double-sided M.2 Shield Frozr.

MEG Z690 UNIFY

stable cornerstone of your system

8-Layer Server Grade PCB

Server grade and multilayer printed circuit boards optimized the system stability, makes your system runs stable and cool.

2oz Thickened Copper

2oz thickened copper PCB provides higher performance and long-lasting system stability.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

Direct 19+2 Power Phases

with 105A SPS

Highest quality components with direct digital power, 105A Smart Power Stage and titanium choke III make sure your system runs smoothly under the most extreme conditions.

Smart Button

One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.

Advanced SMT Process

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetic and interference, deliver the clean and pure signal.

MEG Z690 UNIFY

OUTSTANDING COOLING SOLUTION

Aluminum Cover with

7W/mK Thermal Pad

Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Double side

M.2 Shield Frozr

Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Heat-pipe Design

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

Aluminum Backplate

The aluminum baseplate cools down your Mosfet with dedicated thermal pad.

‹›

PREMIUM

HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 UNIFY is ready to deliver the world class memory performance.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

MEG Z690 UNIFY

1. Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
2. Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
3. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
4. Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
5. Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
6. Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
7. Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
8. Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G.
9. 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
10. Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
