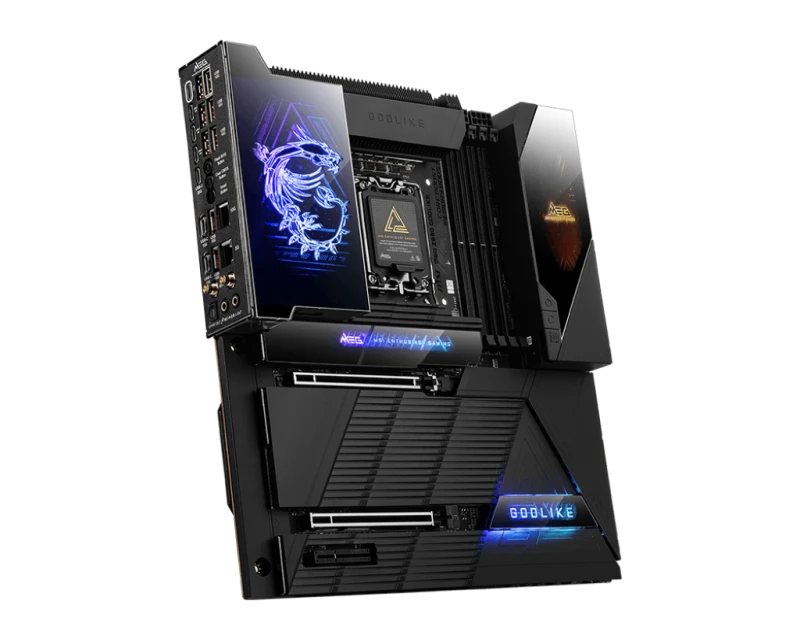

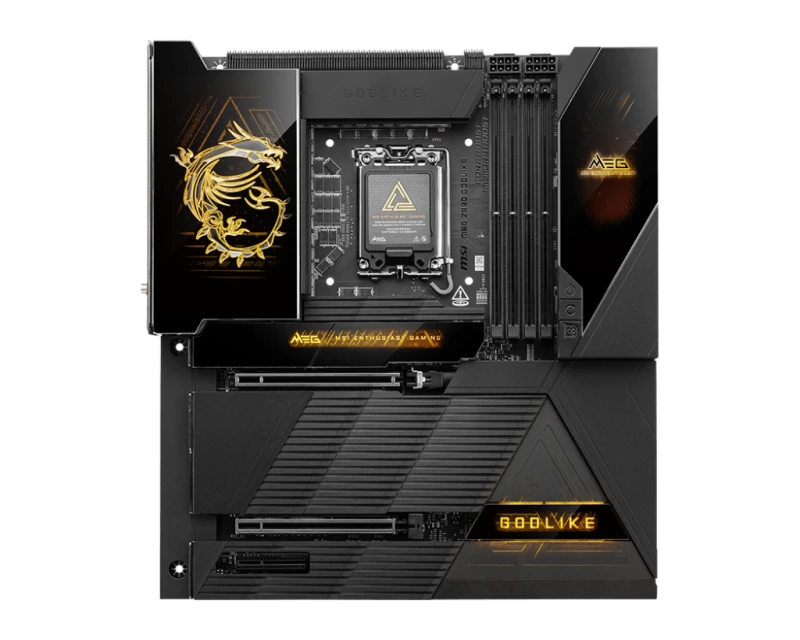

MEG Z890 GODLIKE
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
THUNDERBOLTM5: The Thunderbolt 5 accessory card features dual Thunderbolt 5 ports, delivering up to 160Gbps of total bandwidth and up to 27W of rapid power delivery for charging.
Ultra Performance: 26+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN + 5G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
Lightning Fast Game Experience: PCIe 5.0 slots, Total 8x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
LIGHTNING GEN 5 SOLUTION
Dual SMT PCIe 5.0 Slots
with Steel Armor II
Onboard 6x M.2 Slots with Lightning Gen 5 Solution
M.2 XPANDER-Z SLIDER GEN5
In addition to the 6 built-in M.2 slots, the MEG Z890 GODLIKE also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options.
One Slot thickness
INTRO SHOWCASE
2x Lightning Gen 5
M.2 Slots
EZ Slide Design
70mm Double-ball Bearing FAN
LED Indication

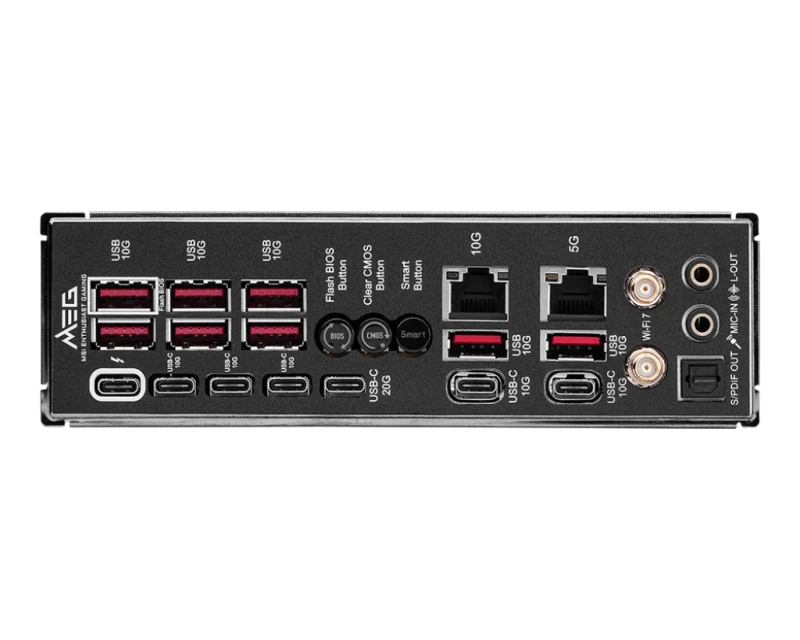

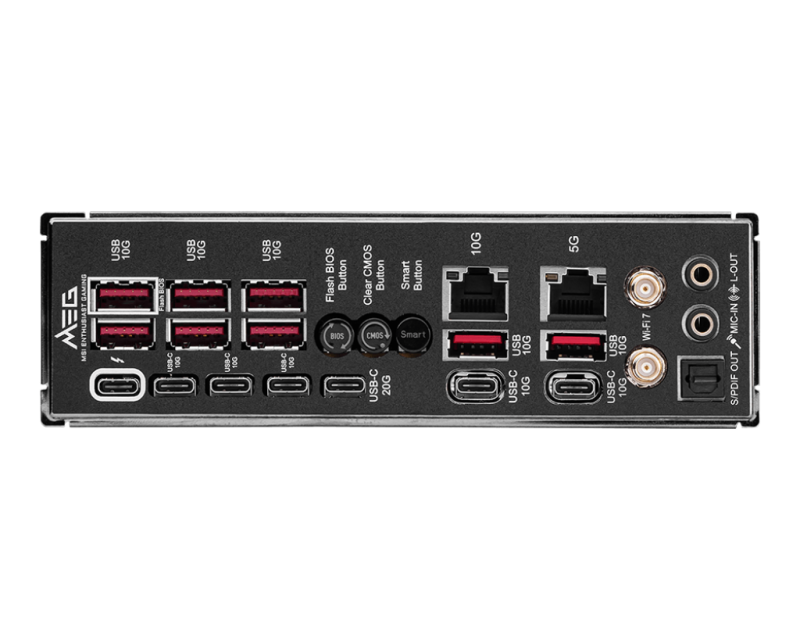

ULTRA CONNECT
27W Power Delivery
10G + 5G LAN
Premium Marvell 10Gbps LAN & Intel Killer 5Gbps LAN provide the next level network speed, secure networking with the fastest data throughput to deliver the utmost online experience.
Full-speed Wi-Fi 7 Solution
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Data Transfer Rate
Channel Size
Thunderbolt 4 Port
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
Thunderbolt 5
The exclusive THUNDERBOLTM5 accessory card offers up to 160Gbps of total bandwidth, support for multiple 8K external displays, and 27W fast-charging power delivery.
27W Power Delivery
10G + 5G LAN
Premium Marvell 10Gbps LAN & Intel Killer 5Gbps LAN provide the next level network speed, secure networking with the fastest data throughput to deliver the utmost online experience.
Full-speed Wi-Fi 7 Solution
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Data Transfer Rate
Channel Size
Thunderbolt 4 Port
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
Thunderbolt 5
The exclusive THUNDERBOLTM5 accessory card offers up to 160Gbps of total bandwidth, support for multiple 8K external displays, and 27W fast-charging power delivery.
ULTIMATE FEATURES
CLICK BIOS X
EZ PCIE RELEASE
SUPPLEMENTAL
PCIE POWER
SUPER CHARGER +
EZ CONN-DESIGN
ARGB
FAN
USB
EZ ANTENNA
METAL BACKPLATE
PRE-INSTALLED
I/O SHIELD
EZ M.2 CLIP II
BEYOND THE NORM
MEET GODLIK
PERFORMANCE & THERMA
OPTIMAL EFFICIENCY
Wavy Fin Design
Direct Touch
Cross Heat-pipe
9W/mK MOSFET
Thermal Pads
Aluminum Cover
Double-sided
M.2 Shield Frozr
26+2+1+1 Phases Design
OC Engine
10-Layer Server Grade
with 2oz Copper PCB
Metal Backplate
PCIe Supplemental Power
Enlarged PCH Heatsink
HIGH-SPEED TRANSMISSION
Thunderbolt 4 Port
10G Super LAN
5G LAN
Full-Speed Wi-Fi 7
Lightning Gen 5
PCIe Slots
THUNDERBOLTM5
Latest DDR5 Memory
Front USB 20G Type-C
with 60W PD
Front Thunderbolt 4 port
Octuple M.2 Slots
with Gen 5 Solution
M.2 XPANDER-Z
SLIDER GEN5
EFFORTLESS ASSEMBLY
| Weight: | 1.00 kg |
| Dimensions: | 27.00 cm x 27.00 cm x 5.50 cm |
|
Chipset INTEL Z890 CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. Onboard Graphics 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot. ** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot. Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel Storage 8x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices * Supports onboard 6x M.2 slots and additional 2x M.2 slots via M.2 card. ** M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. *** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Onboard Thunderbolt 1x Thunderbolt4 ports (Rear) 1x Thunderbolt4 ports (Front) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display USB 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit. LAN 1x Marvell® AQC113CS 10Gbps LAN 1x Intel® Killer™ E5000B 5G LAN Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 7x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. LED FEATURE 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch |
