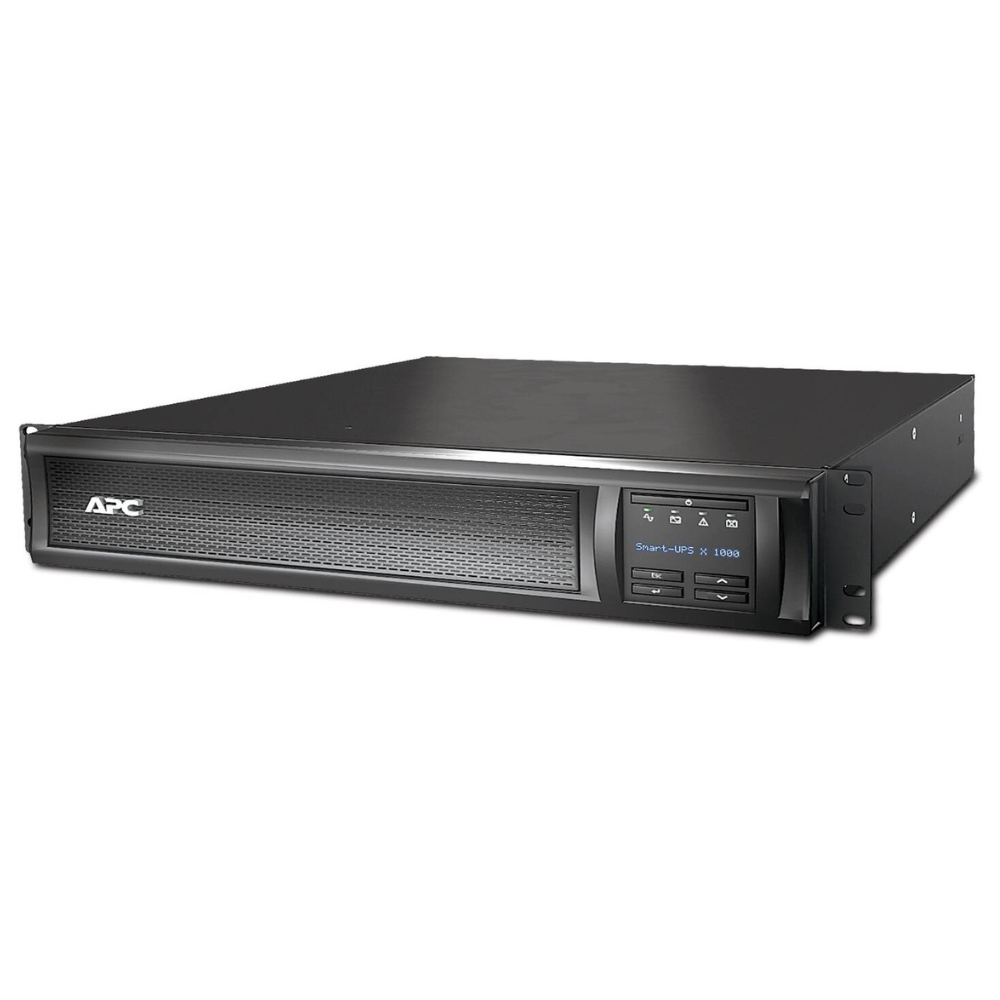

1000VA/800W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)
Add up to 5 external battery packs (SMX48RMBP2U)
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Ideal for servers, storage, networking & commercial applications

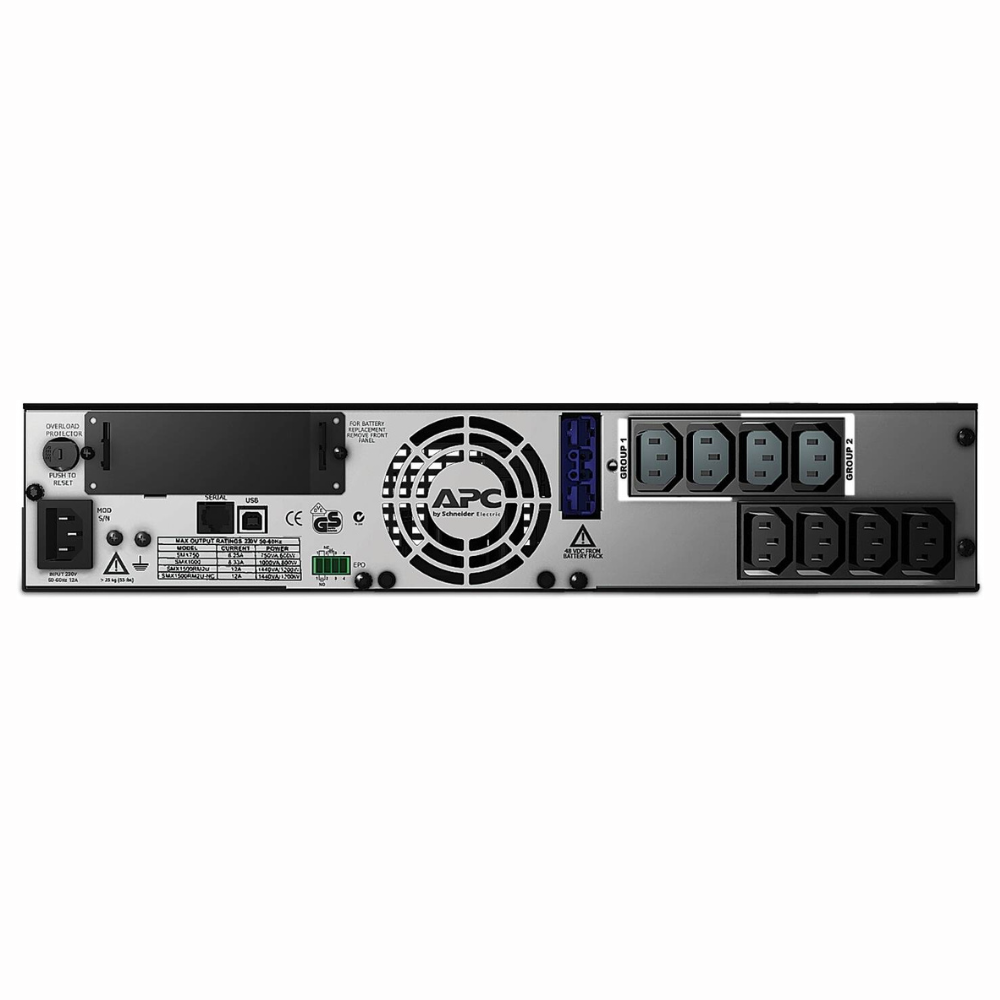

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1000VA/800W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 490mm (depth) x 89mm (height) x 432mm (width) and weighs 22.86kg. Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters. It conforms to CE, VDE, EAC, RCM, and EN/IEC 62040-1/62040-2.
| Weight: | 27.32 kg |
| Dimensions: | 62 x 59 x 24.60 cm |
|
Product or component type Uninterruptible power supply (UPS) Complementary Communication port type SmartSlot Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Extended runtime 0 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 3 h Number of battery replacement quantity 1 Overcurrent protection 60 A Battery life 3…5 year(s) Replacement battery APCRBC116 Battery charger power 99 W rated General Provided equipment CD with software Documentation CD Installation guide Rack mounting brackets Removable support feet Smart UPS signalling RS-232 cable USB cable Number of power module 0 Number of power module filled slots 0 Number of power module free slots 0 product web sub-family Extended run Redundant No Physical Number of rack unit 2U Cable length 1.8 m Number of cables 1 Colour Black Height 8.9 cm Width 43.2 cm Depth 49 cm Product weight 22.86 kg Mounting preference Lower Mounting mode Rack-mounted with kit Two post mountable 1 USB compatible No Input Main Input Voltage 230 V Input Connection Type IEC 320 C14 Input voltage limits 151...302 V adjustable 160...286 V Network frequency 50/60 Hz +/- 3 Hz auto-sensing Output Main Output Voltage 230 V Rated power in W 800 W Rated power in VA 1000 VA output connection type 8 IEC 320 C13 2 IEC Jumpers Harmonic distortion Less than 5 % Maximum configurable power in VA 1000 VA Maximum configurable power in W 800 W UPS type Line interactive Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Conformance Product certifications CE CSA EAC RCM UK PSTI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 40 dBA Heat dissipation 82 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…45 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m Relative humidity 0…95 % Storage Relative Humidity 0…95 % Communications & Management control panel Multifunction LCD status and control console Emergency power off Yes Free slots 1 Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering Surge energy rate 600 J Noise suppression Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 26.000 cm Package 1 Width 59.000 cm Package 1 Length 63.000 cm Package 1 Weight 25.094 kg Unit Type of Package 2 P12 Number of Units in Package 2 2 Package 2 Height 90.000 cm Package 2 Width 80.000 cm Package 2 Length 120.000 cm Package 2 Weight 62.188 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery Show more specifications |
