APC Smart-UPS SRT5KRMXLI, 5000VA/4500W, 230V, Online UPS, Pure Sine Wave, Rackmount 3U

Main Input Voltage

230 V

Product or component type

Uninterruptible power supply (UPS)

Other Input Voltage

220 V

240 V

Main Output Voltage

230 V

Other Output Voltage

220 V

240 V

Rated power in W

4500 W

Rated power in VA

5000 VA

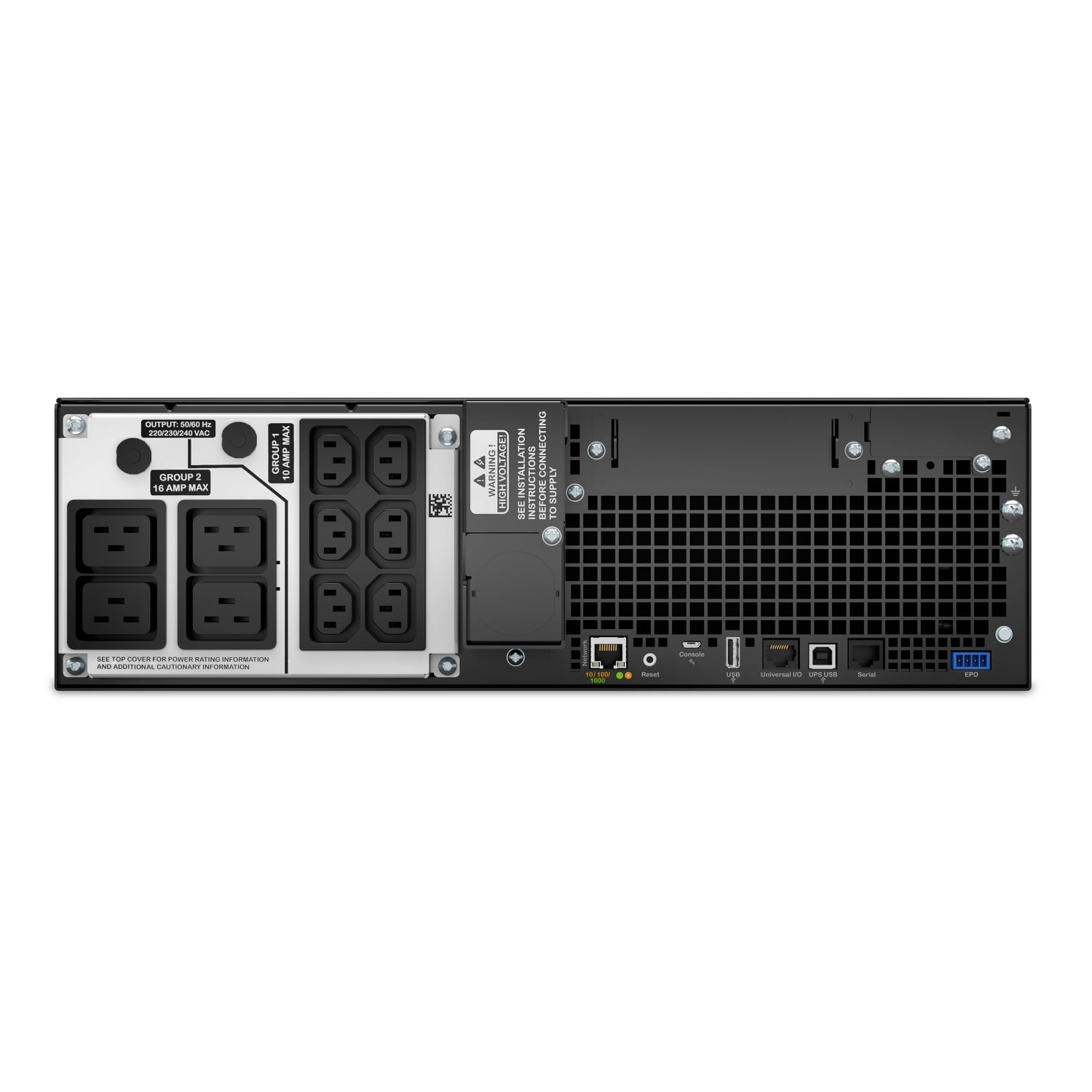

output connection type

6 IEC 60320 C13

2 IEC Jumpers

4 IEC 60320 C19

Number of rack unit

3U

Provided equipment

Documentation CD

Installation guide

Rack mounting hardware

Rack mounting brackets

Rack mounting support rails

Temperature probe

Warranty card

Web/SNMP management card

Range of product

Smart-UPS On-Line

Batteries & Runtime

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

192 V

Extended runtime

1

Number of battery filled slots

0

Battery recharge time

1.5 h

Number of battery replacement quantity

1

Battery life

3…5 year(s)

Replacement battery

APCRBC140

Battery charger power

560 W rated

General

Number of power module filled slots

0

Number of power module free slots

0

product web sub-family

High density

Redundant

No

UPS type

Double conversion online

Physical

Colour

Black

Height

13 cm

Width

43.2 cm

Depth

71.94 cm

Product weight

54.43 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

100...275 V adjustable (half load)

Number of input connectors

1 hard wire 3-wire (1P + N + E)

Network frequency

40...70 Hz auto-sensing

Output

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

5000 VA

Maximum configurable power in W

4500 W

Wave type

Sine wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications

CE

EAC

IRAM

RCM

VDE

Marking

CE Mark

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Acoustic level

55 dBA

Heat dissipation

931 Btu/h

Operating altitude

0...10000 ft

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0.0000000000…15240.0000000000 m

IP degree of protection

IP20

Relative humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

Communications & Management

Emergency power off

Yes

Free slots

1

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

Surge energy rate

480 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

32.500 cm

Package 1 Width

62.000 cm

Package 1 Length

96.000 cm

Package 1 Weight

69.400 kg

Unit Type of Package 2

P12

Number of Units in Package 2

2

Package 2 Height

80.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

153.800 kg

Contractual warranty

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
