Columbus
22,900.00
Inclusive of VAT
Sold By: PC7
Availability: In Stock
Condition: New
Delivery To: Columbus
Free Delivery
Delivered by: Delivery not available in United States

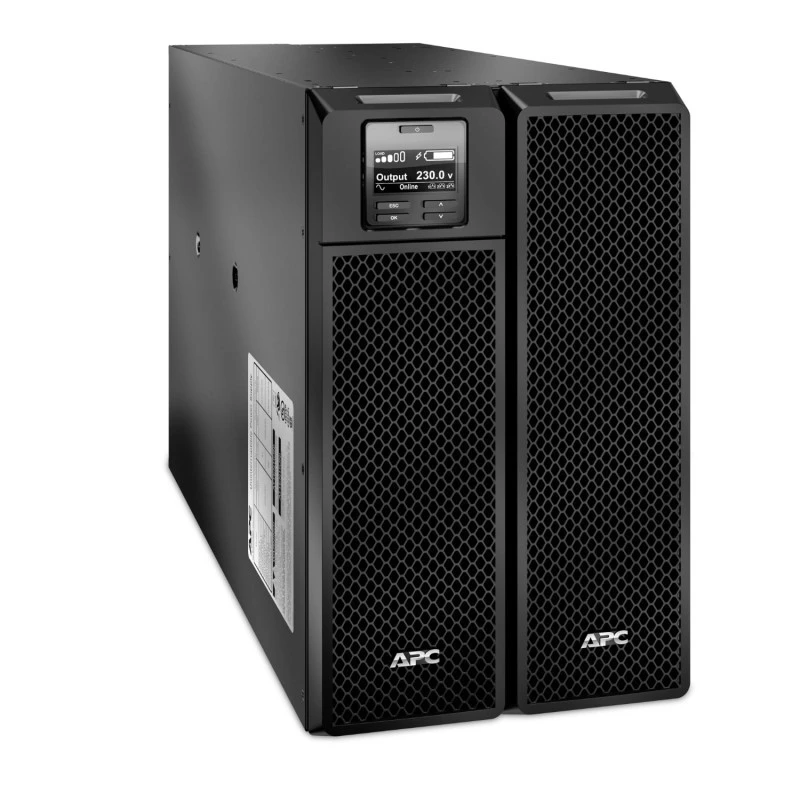

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA/10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 6U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire/5-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 3x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 432mm (depth) x 715mm (height) x 263mm (width) and weighs 111.82kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, VDE, EAC, IRAM, RCM, EN/IEC 62040-1/62040-2. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
10kVA/10kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192BP2) for extended runtime
| Weight: | 126.00 kg |
| Dimensions: | 80x60x30 cm |
|
Main Input Voltage 230 V 400 V 3 phases Product or component type Uninterruptible power supply (UPS) Other Input Voltage 220 V 240 V 380 V 415 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 10000 W rated power in VA 10000 VA output connection type 6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19 Output connector type Hard wire 3-wire (H N + E) 1 Provided equipment CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card Range of product Smart-UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage +/- 192 V (split battery referenced to neutral) Extended runtime 1 Number of battery filled slots 0 Battery recharge time 1.5 h Number of battery replacement quantity 2 Battery life 3…5 year(s) Replacement battery APCRBC140 Battery charger power 876 W rated General Number of power module filled slots 0 Number of power module free slots 0 product web sub-family High density Redundant No UPS type Double conversion online Physical Colour Black Height 43.2 cm Width 26.3 cm Depth 71.5 cm Net weight 111.82 kg Mounting location Front Mounting preference No preference Mounting mode Rack-mounted with kit Two post mountable 0 USB compatible Yes Input Input voltage limits 100...275 V adjustable (half load) 173...476 V adjustable (half load) Number of input connectors 1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E) Network frequency 40...70 Hz auto-sensing Output Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Harmonic distortion Less than 2 % Maximum configurable power in VA 10000 VA Maximum configurable power in W 10000 W Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Conformance Product certifications CE EAC IRAM RCM VDE Marking CE Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 55 dBA Heat dissipation 1947 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m IP degree of protection IP20 Relative humidity 0…95 % Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Yes Free slots 1 Preinstalled device Network management card 3 with environmental monitoring Alarm Audible and visible alarms : prioritized by severity Surge Protection and Filtering Surge energy rate 480 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 46.100 cm Package 1 Width 100.000 cm Package 1 Length 60.000 cm Package 1 Weight 126.820 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery |
22,900.00
No reviews yet for this product.
