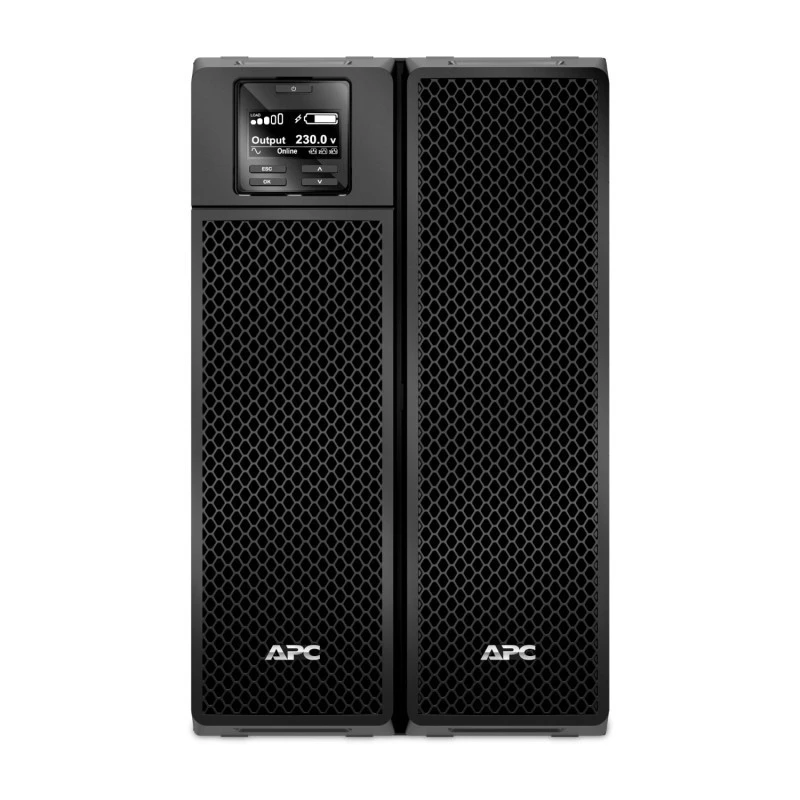

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately
8kVA/8kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192BP2) for extended runtime
| Weight: | 126.00 kg |
| Dimensions: | 80x60x40 cm |
|
Main Input Voltage 230 V 400 V 3 phases Product or component type Uninterruptible power supply (UPS) Other Input Voltage 220 V 240 V 380 V 415 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 8000 W rated power in VA 8000 VA output connection type 6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19 Output connector type Hard wire 3-wire (H N + E) 1 Provided equipment CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card Range of product Smart-UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage +/- 192 V (split battery referenced to neutral) Extended runtime 1 Number of battery filled slots 0 Battery recharge time 1.5 h Number of battery replacement quantity 2 Battery life 3…5 year(s) Replacement battery APCRBC140 Battery charger power 876 W rated General Number of power module filled slots 0 Number of power module free slots 0 product web sub-family High density Redundant No UPS type Double conversion online Physical Colour Black Height 43.2 cm Width 26.3 cm Depth 71.5 cm Net weight 111.82 kg Mounting location Front Mounting preference No preference Mounting mode Rack-mounted with kit Two post mountable 0 USB compatible Yes Input Input voltage limits 100...275 V adjustable (half load) 173...476 V adjustable (half load) Number of input connectors 1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E) Network frequency 40...70 Hz auto-sensing Output Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Harmonic distortion Less than 2 % Maximum configurable power in VA 8000 VA Maximum configurable power in W 8000 W Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Conformance Product certifications CE EAC IRAM RCM VDE Marking CE Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 55 dBA Heat dissipation 1497 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m IP degree of protection IP20 Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Yes Free slots 1 Preinstalled device Network management card 3 with environmental monitoring Alarm Audible and visible alarms : prioritized by severity Surge Protection and Filtering Surge energy rate 480 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 46.1 cm Package 1 Width 60 cm Package 1 Length 100 cm Package 1 Weight 126.82 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery |
