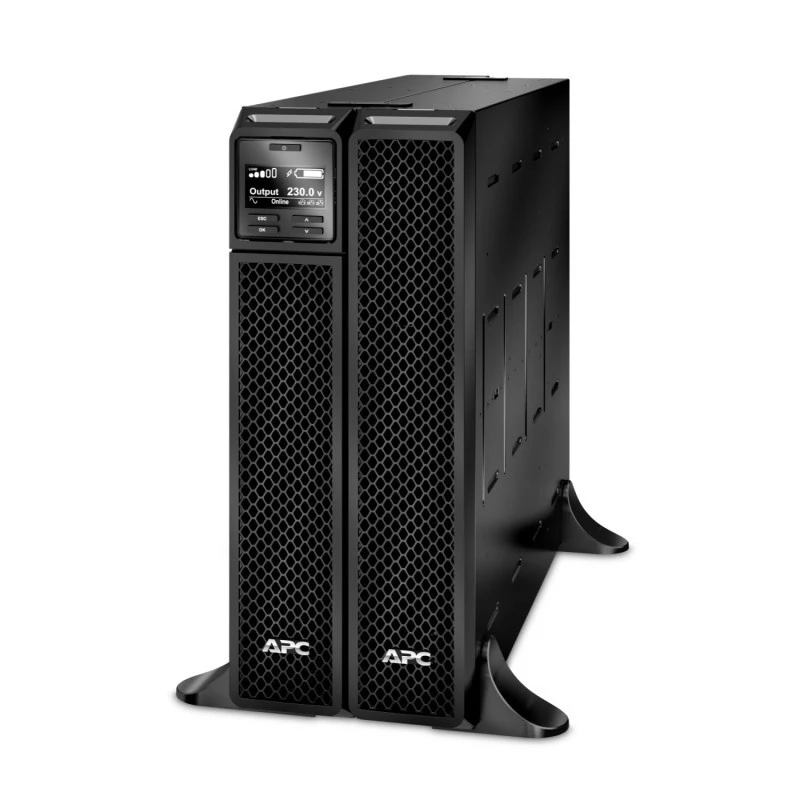

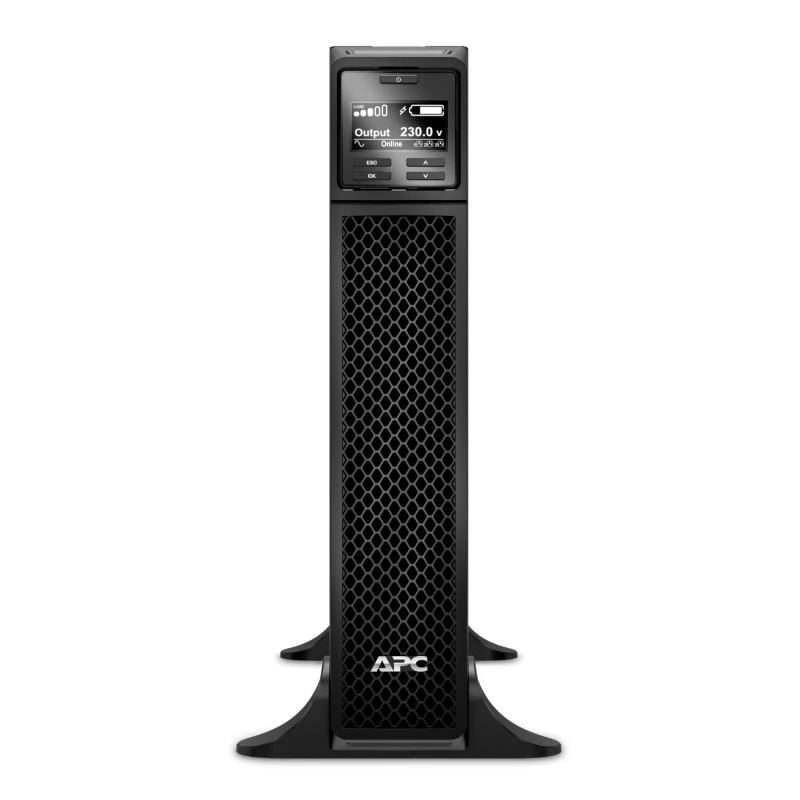

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 635mm (depth) x 432mm (height) x 85mm (width) and weighs 31.30kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 10 external battery packs (SRT96RMBP) for extended runtime
| Weight: | 37.00 kg |
| Dimensions: | 40x30x20 cm |
|
Main Input Voltage 230 V Product or component type Uninterruptible power supply (UPS) Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 2700 W rated power in VA 3000 VA Input Connection Type IEC 60320 C20 Schuko CEE 7 / EU1-16P output connection type 8 IEC 60320 C13 2 IEC Jumpers 2 IEC 60320 C19 Cable length 2.4 m Number of cables 3 Provided equipment CD with software Country-specific detachable power cord Documentation CD Installation guide Removable support feet USB cable Warranty card Range of product Smart-UPS On-Line Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage 96 V Extended runtime 1 Battery recharge time 3 h Number of battery replacement quantity 1 Battery life 3…5 year(s) Replacement battery APCRBC152 Battery charger power 168 W rated General Number of power module filled slots 0 Number of power module free slots 0 product web sub-family High density Redundant No UPS type Double conversion online Physical Colour Black Height 43.2 cm Width 8.5 cm Depth 63.5 cm Net weight 31.3 kg Mounting location Front Mounting preference Lower Mounting mode Rack-mounted with kit Two post mountable 0 USB compatible Yes Mounting position Vertical Input Input voltage limits 100...275 V adjustable (half load) Network frequency 40...70 Hz auto-sensing Output Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Harmonic distortion Less than 2 % Maximum configurable power in VA 3000 VA Maximum configurable power in W 2700 W Wave type Sine wave Output frequency 50/60 Hz +/- 3 Hz sync to mains Additional information Configurable for 220 : 230 or 240 nominal output voltage Conformance Product certifications CE EAC RCM VDE UK PSTI Marking CE Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 55 dBA Heat dissipation 703 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m IP degree of protection IP20 Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Communications & Management Emergency power off Yes Free slots 1 Alarm Audible and visible alarms : prioritized by severity Surge Protection and Filtering Surge energy rate 340 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 40.000 cm Package 1 Width 80.000 cm Package 1 Length 120.000 cm Package 1 Weight 48.638 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery |
