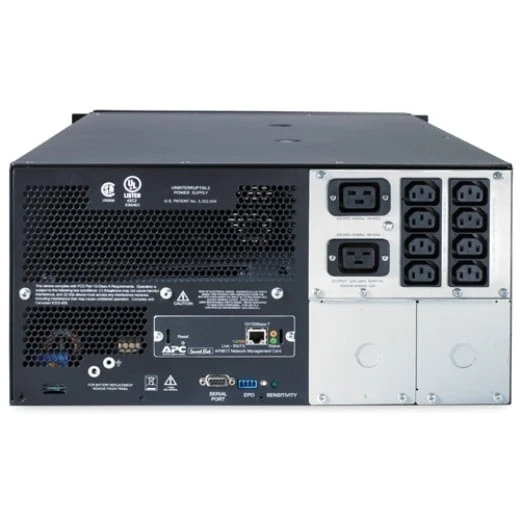

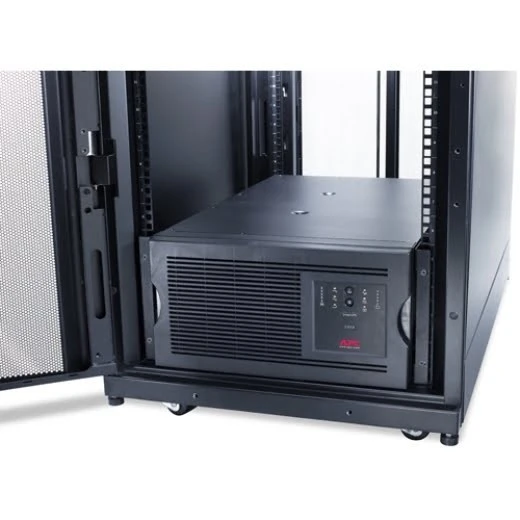

The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as 8 IEC 320 C13 and 2 IEC 320 C19. The UPS uses lead-acid battery and features a SmartSlot for additional management options.
"Intelligent and efficient network power protection from entry level to scalable runtime. "
"Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices."
"Provides remote management of the UPS over the network."
"LED status indicators Quickly understand unit and power status with visual indicators"
| Weight: | 98.00 kg |
| Dimensions: | 80x70x30 cm |
|
Product or component type Uninterruptible power supply (UPS) Complementary Communication port type SmartSlot Batteries & Runtime Run Time View Runtime Graph Battery type Lead-acid battery Additional information Configurable for 220 : 230 or 240 nominal output voltage Extended runtime 0 Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 3 h Number of battery replacement quantity 2 Battery life 3…5 year(s) Replacement battery RBC55 Battery charger power 542 W rated General Provided equipment CD with software Documentation CD Installation guide Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card Number of power module 0 Number of power module filled slots 0 Number of power module free slots 0 Redundant No Physical Number of rack unit 5U Colour Black Height 22.2 cm Width 48.3 cm Depth 66 cm Net weight 97.73 kg Mounting location Front Mounting preference No preference Mounting mode Rack-mounted Two post mountable 0 USB compatible No Input Main Input Voltage 230 V Input voltage limits 151...302 V adjustable 160...286 V Number of input connectors 1 hard wire 3-wire Network frequency 50/60 Hz +/- 3 Hz auto-sensing Output Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 4000 W rated power in VA 5000 VA output connection type 8 IEC 320 C13 4 IEC Jumpers 2 IEC 320 C19 Crest factor 3 : 1 Harmonic distortion Less than 5 % at full load Maximum configurable power in VA 5000 VA Maximum configurable power in W 4000 W Transfer time 2 ms typical : 4 ms maximum UPS type Line interactive Wave type Sine wave Efficiency 96 % (full load) Output frequency 47...53 Hz for 50 Hz nominal sync to mains Conformance Product certifications C-Tick CE GOST VDE Marking GS Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level 53 dBA Heat dissipation 430 Btu/h Operating altitude 0...10000 ft Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…45 °C Storage altitude 0.0000000000…15240.0000000000 m Relative humidity 0…95 % Storage Relative Humidity 0…95 % Communications & Management Alarm Audible and visible alarms : configurable delays Free slots 0 Preinstalled device Network management card Control panel LED status display with on line : on battery : replace battery and overload indicators Surge Protection and Filtering Surge energy rate 480 J Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 63.5 cm Package 1 Width 61 cm Package 1 Length 76.2 cm Package 1 Weight 106.82 kg Unit Type of Package 2 PAL Number of Units in Package 2 4 Package 2 Height 119 cm Package 2 Width 100 cm Package 2 Length 120 cm Package 2 Weight 464 kg Contractual warranty Warranty 2 years repair or replace |
