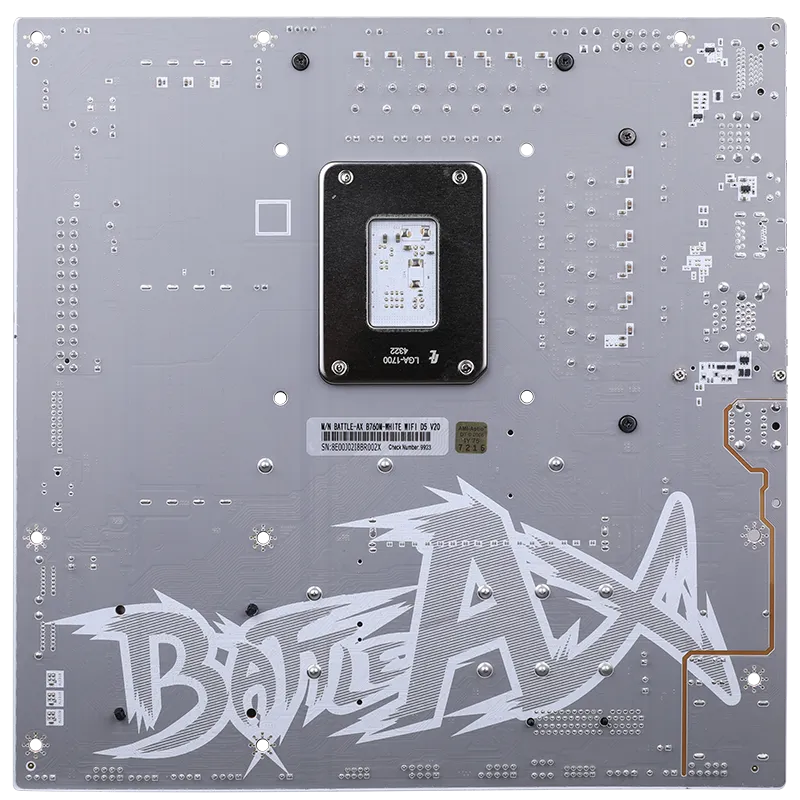

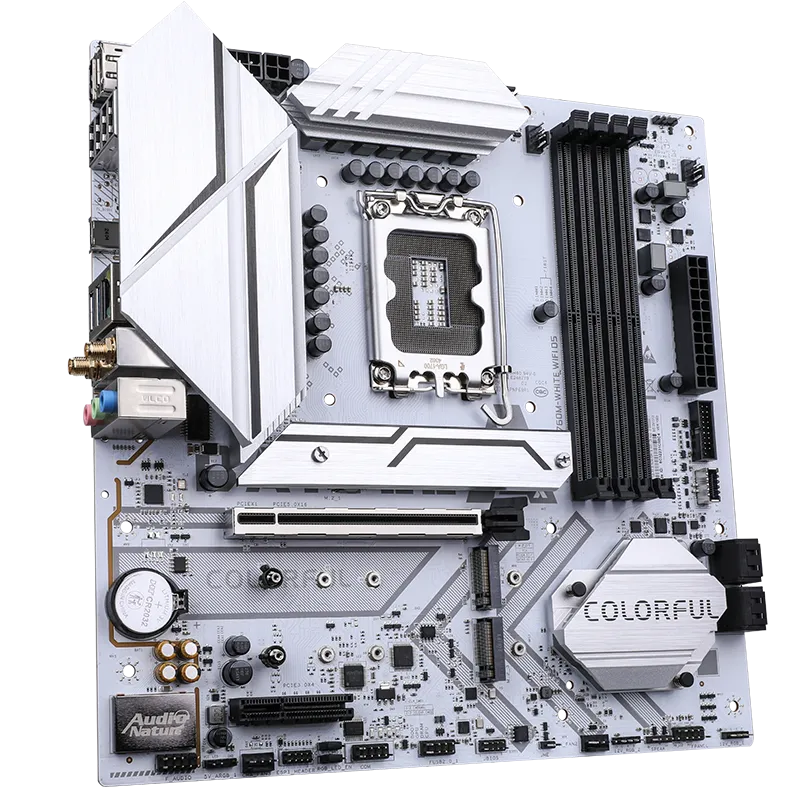

Model

BATTLE-AX B760M-WHITE WIFI D5 V20

Product Series

BATTLE-AX series

Chipset

Intel B760

Processor

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Memory

4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

- DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory

- Intel is supported ® Extreme Memory Profile (XMP) memory technology

- supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)

- M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

- M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

Board I/O

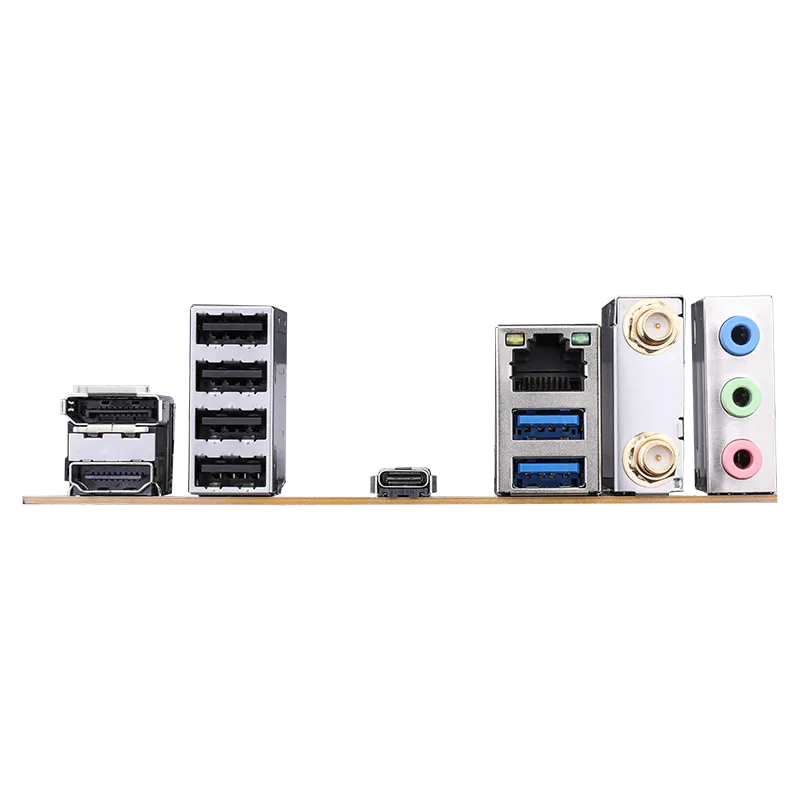

Rear I/O :

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 Type-A interfaces

-1×USB 3.2 Gen 2 Type-C interface

-1×DP 1.2 interface, supports up to 4K 60Hz resolution

-1×HDMI 2.0 interface, supports up to 4K 60Hz resolution

-1×2.5G network interface

-2×Wi-Fi 6 antenna interfaces

-3×Audio interfaces (audio input/audio output/microphone)

On board:

-1×CPU fan pin

-3×System fan pins

-1×Water cooling pump pin

-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface

-2×5V 3-pin ARGB pins

-2×12V 4-pin RGB pins

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Clear CMOS jumper

-1×COM port pin

-1×BIOS burner pin

-1×POST card pin

-1×ME write protection jumper

-1×RGB light effect control jumper

Expansion Slots

1×PCIe 5.0 x16 slot

1×PCIe 3.0 x4 slot

BIOS

128M UEFI, support multiple languages

Power Management

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN

RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2

Audio

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration

M-ATX

245mm x 245mm
