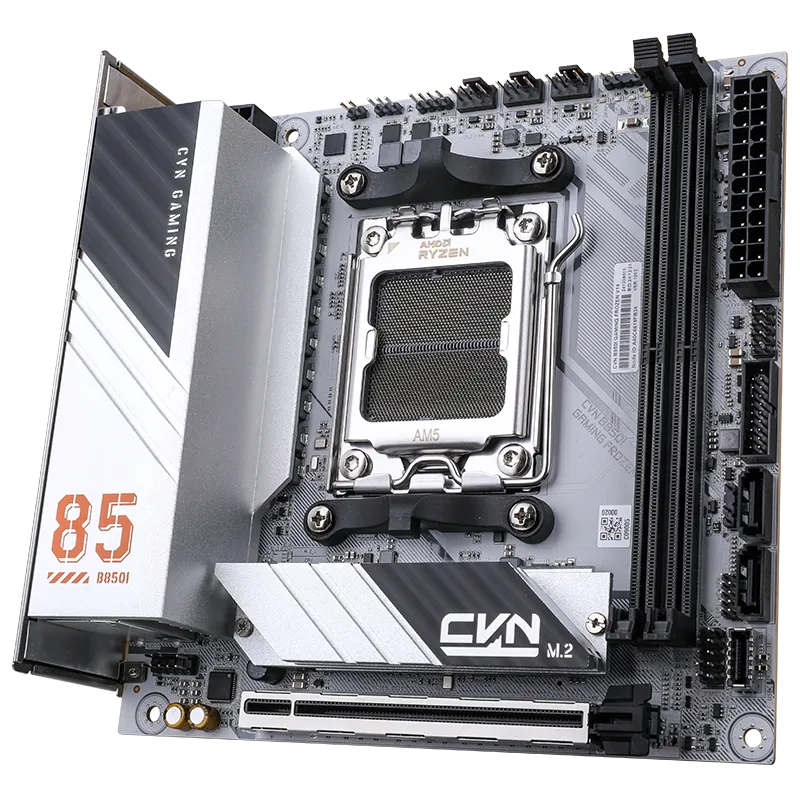

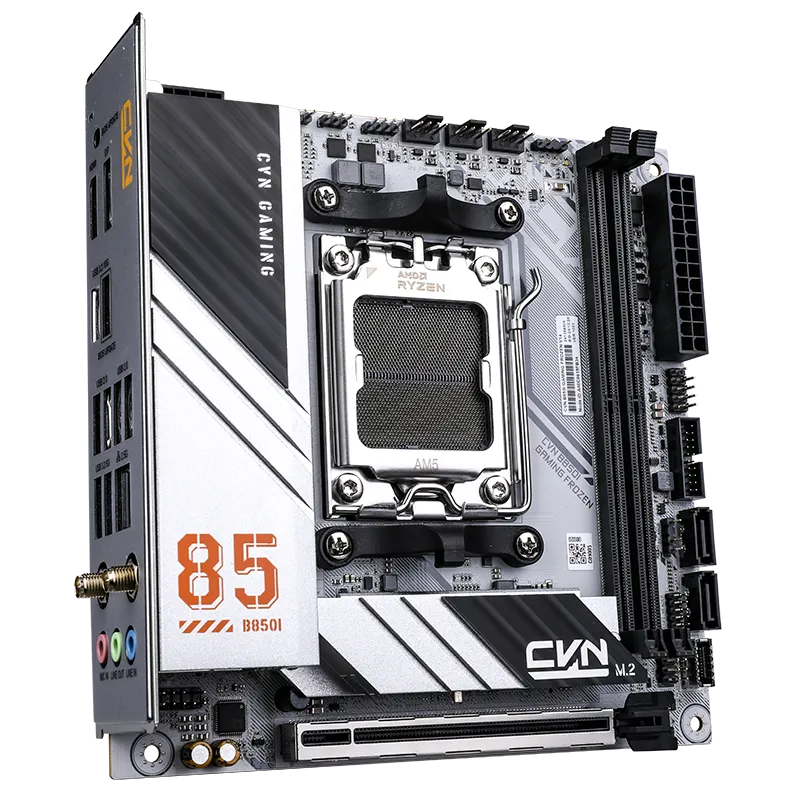

CVN B850I GAMING FROZEN V14
Feature Highlights:
CVN series exclusive customized white motherboard
CVN series customized frost heat dissipation armor, with full-cover condenser to enhance heat dissipation
Adopt 9+2+1 phase enhanced power supply design (Dr MOS 60A)
Provides 1 PCIe 5.0 x4 M.2 SSD slot and 1 PCIe 4.0 x4 M.2 SSD slots
Equipped with Realtek 2.5G high-speed wired network card and AX210 WiFi 6E wireless network card, supports Bluetooth 5.3
Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously

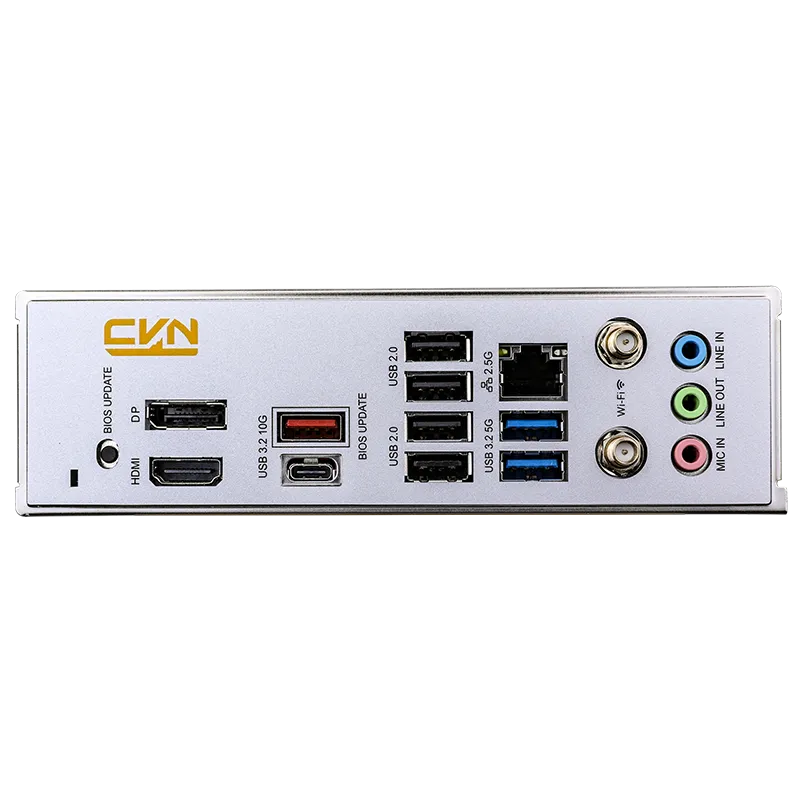

I/O backplane supports one-click BIOS upgrade function
Six major protection technologies, more stable product operation
200 processes strictly tested, quality guaranteed
PCB atomization process fully upgraded
| Weight: | 1.00 kg |
| Dimensions: | 30x20x10 cm |
|
Model CVN B850I GAMING FROZEN V14 Product Series CVN series Chipset AMD B850 Processor Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) Memory 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) SATA Ports 2 M.2 slots and 2 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2280 M.2 SSD (PCIe 5.0 x4, CPU channel) - M.2_2 slot: supports 2280 M.2 SSD (PCIe 4.0 x4, CPU channel) Board I/O Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 2 10Gbps Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×2.5G network interface -2×WiFi 6E antenna interfaces -3×audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 Type-C slot expandable 1 USB 3.2 Gen 2 10Gbps Type-C interface -1×CPU fan pin -1×system fan pin -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×front panel pin -1×speaker pin -1×Clear CMOS jumper -1×POST card pin Expansion Slots 1×PCIe 5.0 x16 slot BIOS 256M UEFI, support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8125BG 2.5Gbit LAN, AX210 WiFi 6E wireless network card, Bluetooth 5.3 Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels Configuration ITX 170 x 170 mm |
