Model

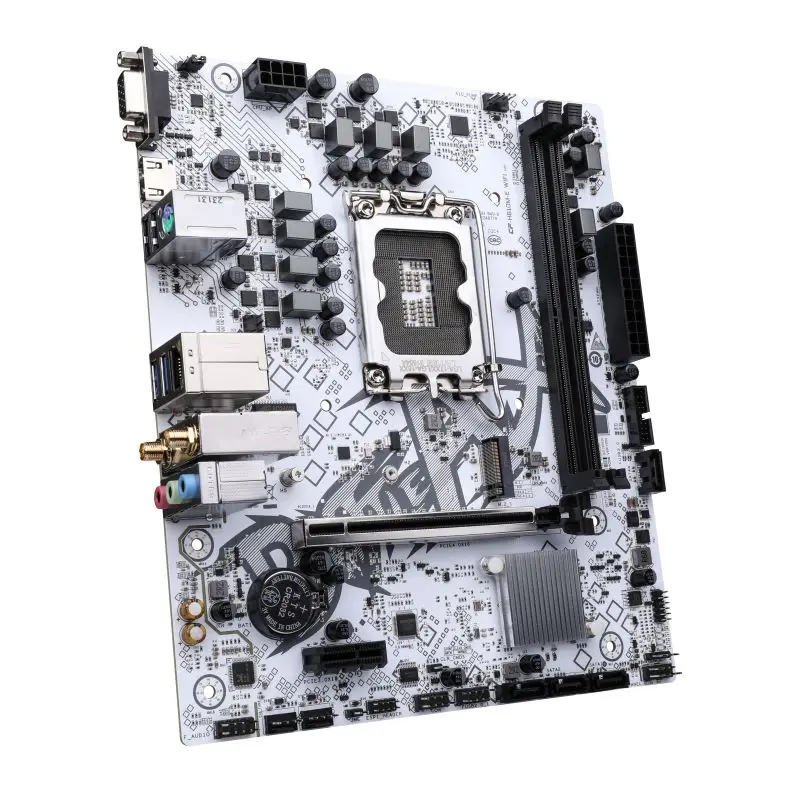

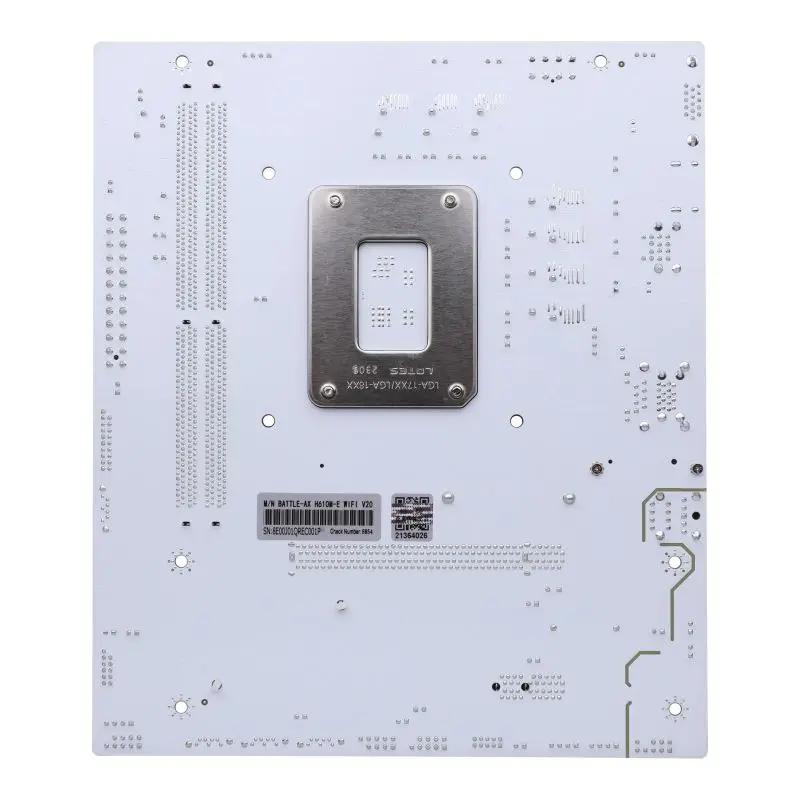

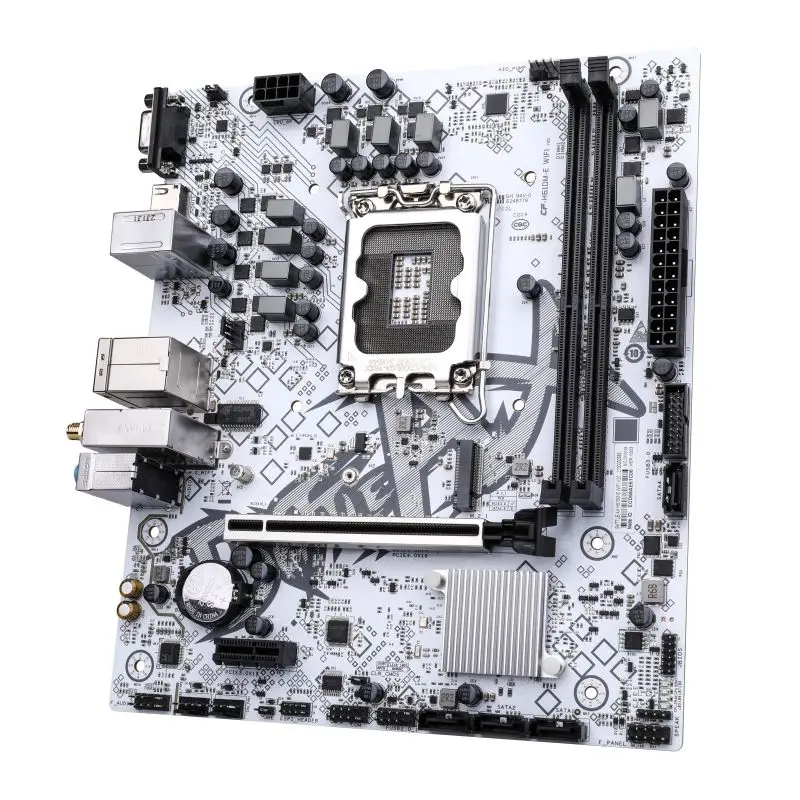

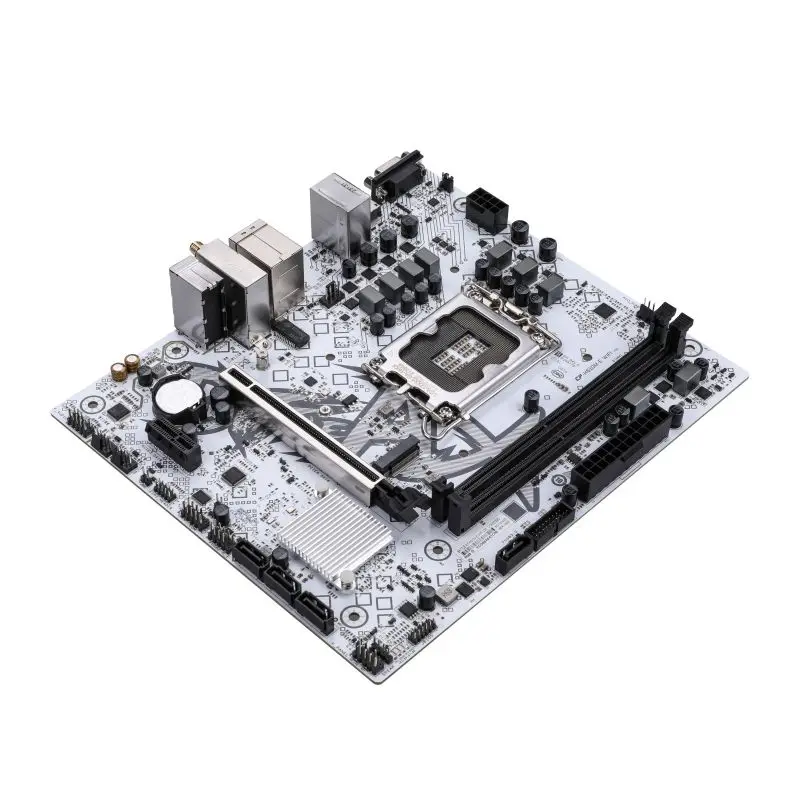

BATTLE-AX H610M-E WIFI V20

Product Series

BATTLE-AX series

Chipset

Intel H610

Processor

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(* Please visit www.colorful.cn for the latest memory compatibility list)

Memory

2 DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory)

- DDR4-3200/2933/2666/2400MHz memory

- support dual-channel memory technology

(* Please visit the official website of Rainbow for the latest memory compatibility list)

SATA Ports

A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported

- M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)

Board I/O

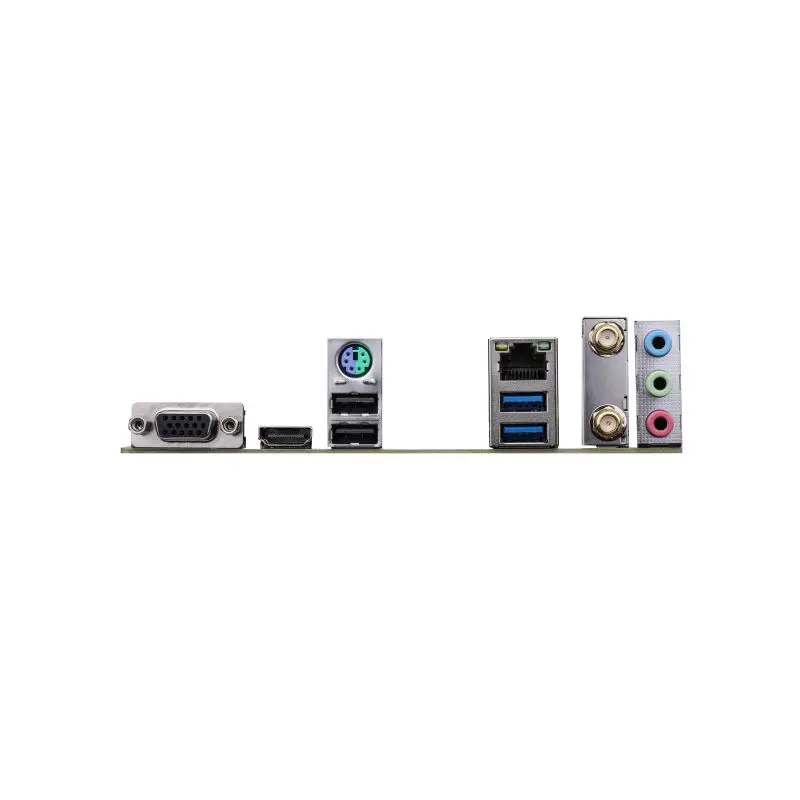

Rear I/O:

- 1×PS/2 interface

- 4×USB 2.0 interfaces

- 2×USB 3.2 Gen 1 Type-A interfaces

- 1×HDMI 2.0 interface, Up to 4K 60Hz resolution

- 1×VGA interface

- 1×Gigabit network interface

- 3×Audio interfaces (audio input/audio output/microphone)

On board:

- 1×CPU fan pin

- 2×System fan pins

- 1×water cooling pump pin

- 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces

- 1×Front audio pin

- 1×Front panel pin

- 1×Speaker pin

- 1×COM port pin

- 1×ME write protection jumper

- 1×Clear CMOS jumper

- 1×BIOS burner pin

- 1×POST Card pin

- 1×Wake-up control jumper

Expansion Slots

1 PCIe 4.0 x16 slot

1 PCIe 3.0 x1 slot

BIOS

128M UEFI, supporting multiple languages

Power Management

Support S3, S4, network S5 wake-up, support timed startup, call startup

Hardware Monitor

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN

RTL8111H Gigabit network card, RTL8821CE/AC3165/AW-CB231NF WiFi 5 Wireless network, Bluetooth 4.2

Audio

5.1 sound card

Configuration

M-ATX

225mm x 194mm
