Columbus
460.00
Inclusive of VAT
Sold By: PC7
Availability: In Stock
Condition: New
Delivery To: Columbus
Delivered by: Delivery not available in United States
Feature Highlights:
Supports dual channel DDR5-7200 (OC) MHz memory
Provide 2 PCIe 4.0 x4 M.2 SSD slots

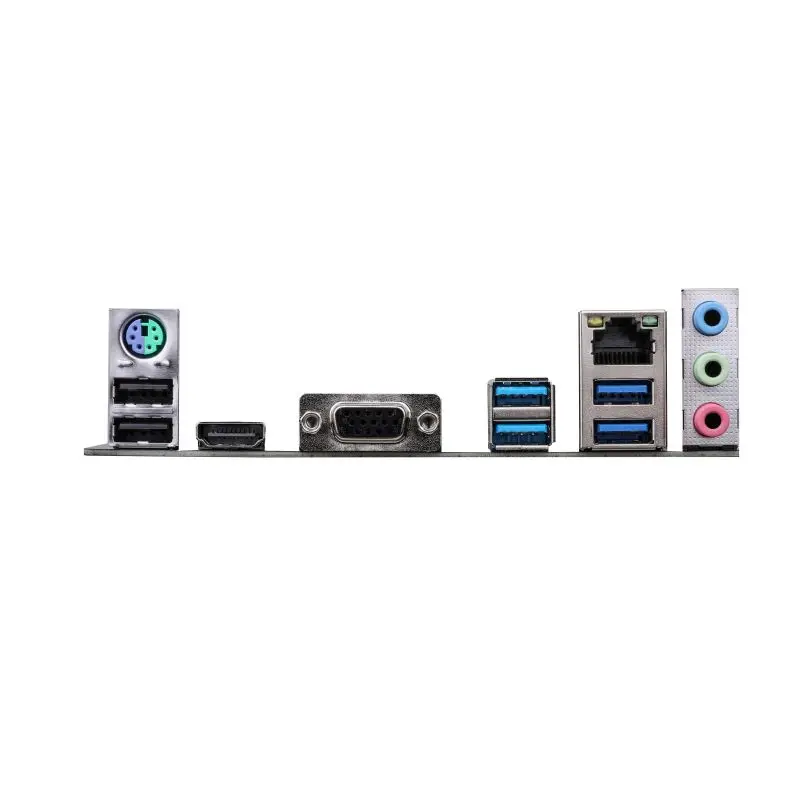

Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with a gigabit wired network card
Provide M.2 WiFi slots, supporting WiFi modules of size 2230
Provide HDMI+VGA display interface
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
| Weight: | 1.00 kg |
| Dimensions: | 30X20X10 cm |
|
Model BATTLE-AX B760M-K D5 V20 Product Series BATTLE-AX series Chipset Intel B760 Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (* Please visit www.colorful.cn for the latest memory compatibility list) Memory 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) Board I/O Rear I/O: - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution - 1×VGA interface - 1×PS.2 interface - 1×gigabit network interface - 3×audio interfaces(audio input/audio output/microphone) On board: - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×CPU fan pin - 2×System fan pins - 1×Front audio pin - 1×Front panel pin - 1×Spraker pin - 1×COM port pin - 1×ME write protection jumper - 1×Clear CMOS jumper - 1×BIOS burner pin - 1×POST card pin - 1×Wake-up control jumper Expansion Slots 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x1 slot BIOS 128M UEFI, support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8111H Gigabit Network Card Audio 5.1 Channel sound card Configuration M-ATX 236 x 207 mm |
460.00
No reviews yet for this product.
