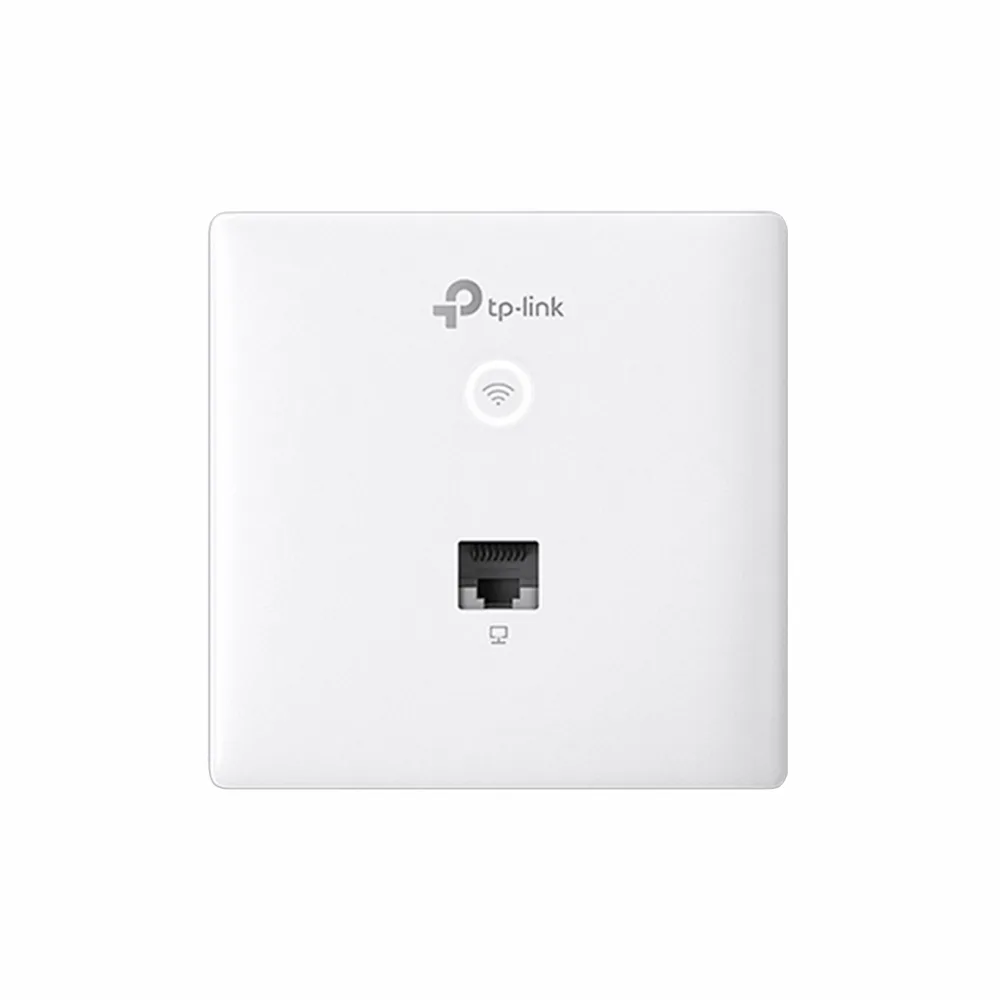

TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, Fast Dual-Band Wi-Fi, Gigabit Ports, PoE Support

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.

Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Unprecedented Thin Design with 11mm

EAP230-Wall

AC Access Point

Simultaneous Dual-Band Multi-User MIMO

802.3af/802.3at PoE Compatibility

Private Connection for Every Room.

EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

Without MU-MIMO

With MU-MIMO

MU-MIMO + Dual-Band: Faster Connection for More Devices

802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.†

5GHz

  867Mbps

2.4GHz

  300Mbps

86mm

Seamlessly Blends with any Décor

 The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

Front Gigabit Port

Back Gigabit Port

High-Speed Gigabit Port

Equipped with a Gigabit port to deliver the fastest possible wired transmission.

TP-Link PoE Switch

Effortless Deployment with Power over Ethernet

802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation

1.Detach and remove the faceplate of the junction box.

2.Plug an Ethernet cable in to the port.

3.Secure the Access Point to the wall using the provided screws.

4.Press the faceplate back into position.

*Fits two kinds of junction boxes

86 mm wall junction box

Standard EU wall junction box

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Learn more about Omada SDN >>

Wi-Fi 6 AP for High-Density Environments

Ceiling Mount AP

Wall-Plate AP EAP230-Wall

Outdoor AP

JetStream PoE Switches

SafeStream Security Gateway

Cloud Access

Omada

Cloud-Based Controller

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
