Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)

Physical Security Lock

No

Button

Reset, LED

Power Supply

802.3af/at PoE

Power Consumption

US: 11.5 W

Dimensions

143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)

Antenna

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 5 dBi

Mounting

Wall Plate Mounting (Kits included)

WIRELESS FEATURES

Maximum Number of Wireless Clients

100+△

Concurrent Clients

100+

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

Transmit Power

• CE:

<20 dBm (2.4GHz, EIRP)

<23 dBm (5GHz band1 & 2, EIRP)

<27 dBm (5GHz band3, EIRP)

• FCC:

< 22 dBm (2.4 GHz)

< 22 dBm (5 GHz)

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming§

• Beamforming

• MU-MIMO

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:

<20 dBm (2.4GHz, EIRP)

<23 dBm (5GHz band1 & 2, EIRP)

<26 dBm (5GHz band3, EIRP)

• FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access

Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, FCC, RoHS

Package Contents

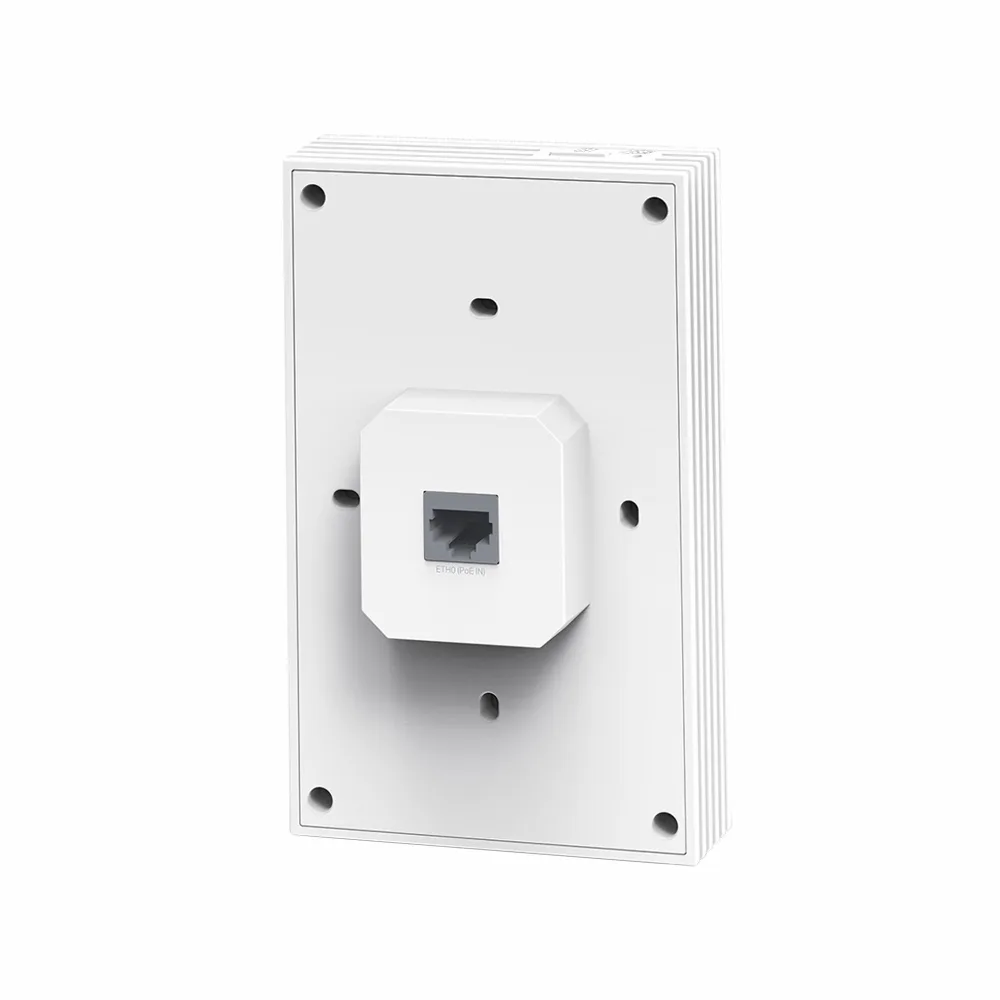

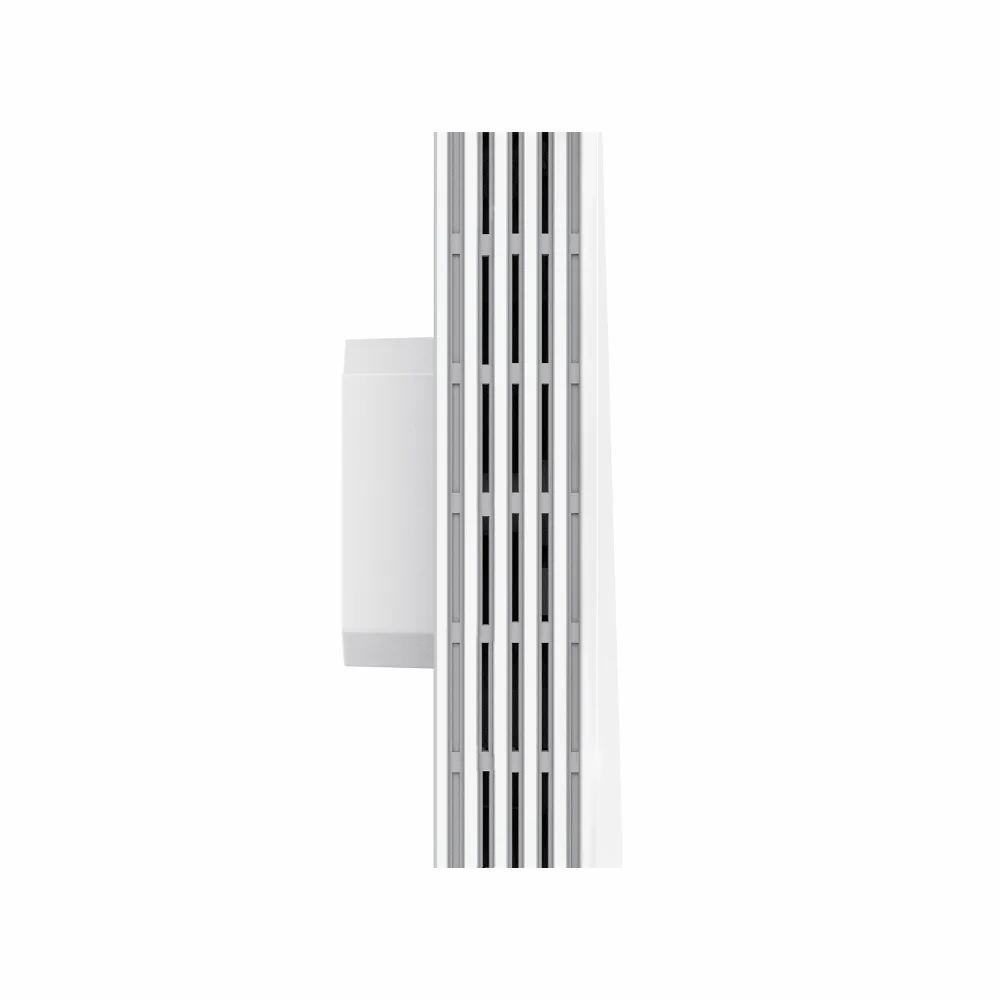

• AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall

• Installation Guide

• Mounting Kits

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
