Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology§
More flexible and convenient wireless deployment
Seamless Roaming§
Uninterrupted streaming when moving between APs
Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
Hospitality
High-quality and full coverage Guest WiFi
Education
High-security WiFi to connect more devices
Shopping Mall
Seamless marketing WiFi coverage to boost business
Office
Stable, seamless, and high-security WiFi coverage
Meeting Room
Faster streaming, downloading, video conferencing, and more
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Learn more about WiFi 6 >>
Superior WiFi 6 Speeds
Higher Efficiency for More Devices
Lightning-Fast AX3000 WiFi 6 Speeds
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.† Every application feels more fluid with drastically improved WiFi speeds.‡
1024 QAM
25% more data encoded at one time
Long OFDM Symbol
11% faster speed
HE160
Double the data at peak transmission times on a single stream‡
5GHz
2.4GHz
2 Stream WiFi 5
Ordinary 2 Stream WiFi 6 with HE80
EAP650: 2 Stream WiFi 6 with HE160
2 Stream WiFi 5
EAP650: 2 Stream WiFi 6
867 Mbps
1201 Mbps
2402 Mbps
300 Mbps
574 Mbps
177% Faster
90% Faster
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Learn more about Omada SDN >>
Hardware, Software, or Cloud-Based Controllers
Centralized Cloud Management
Intelligent Monitoring
Zero-Touch Provisioning (ZTP)*
Internet
Cloud Access
WiFi 6 Ceiling Mount AP EAP650
Wall Plate AP
Outdoor AP
JetStream PoE Switches
Omada VPN Router
Web Browser
Omada App
Omada Hardware Controller
Or
Omada Software Controller
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Before Optimization
● Channel 1
● Channel 1
● Channel 4
After Optimization
● Channel 1
● Channel 11
● Channel 6
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Traditional Wired Networking
Mesh Wireless Networking
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Intelligent Self-Organization
Self-Healing
Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

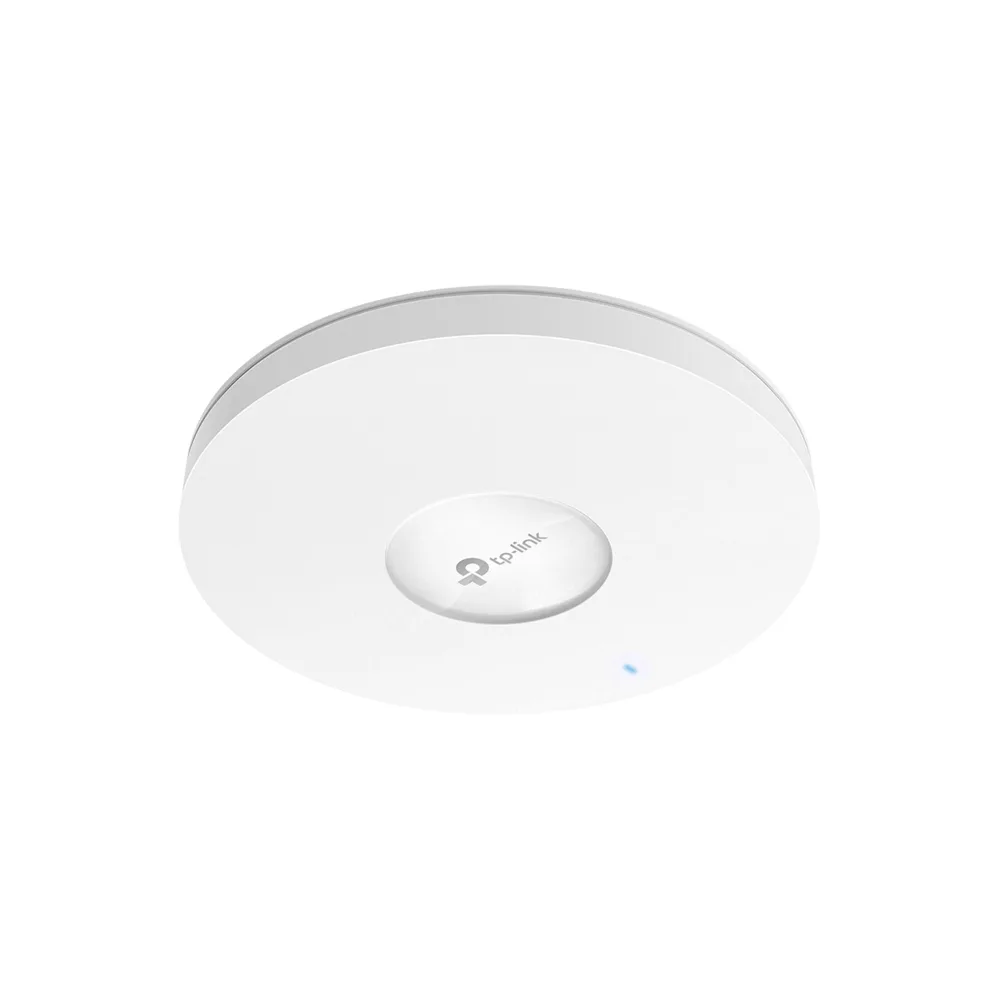

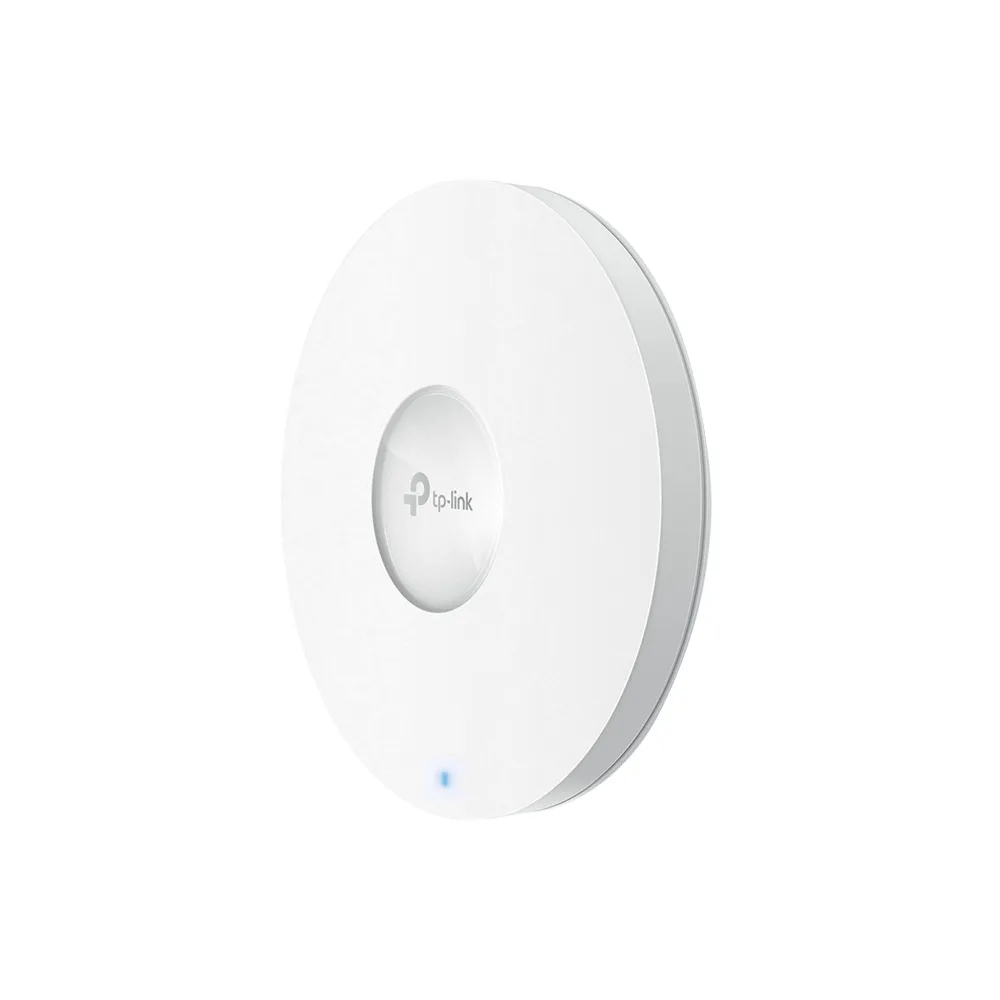

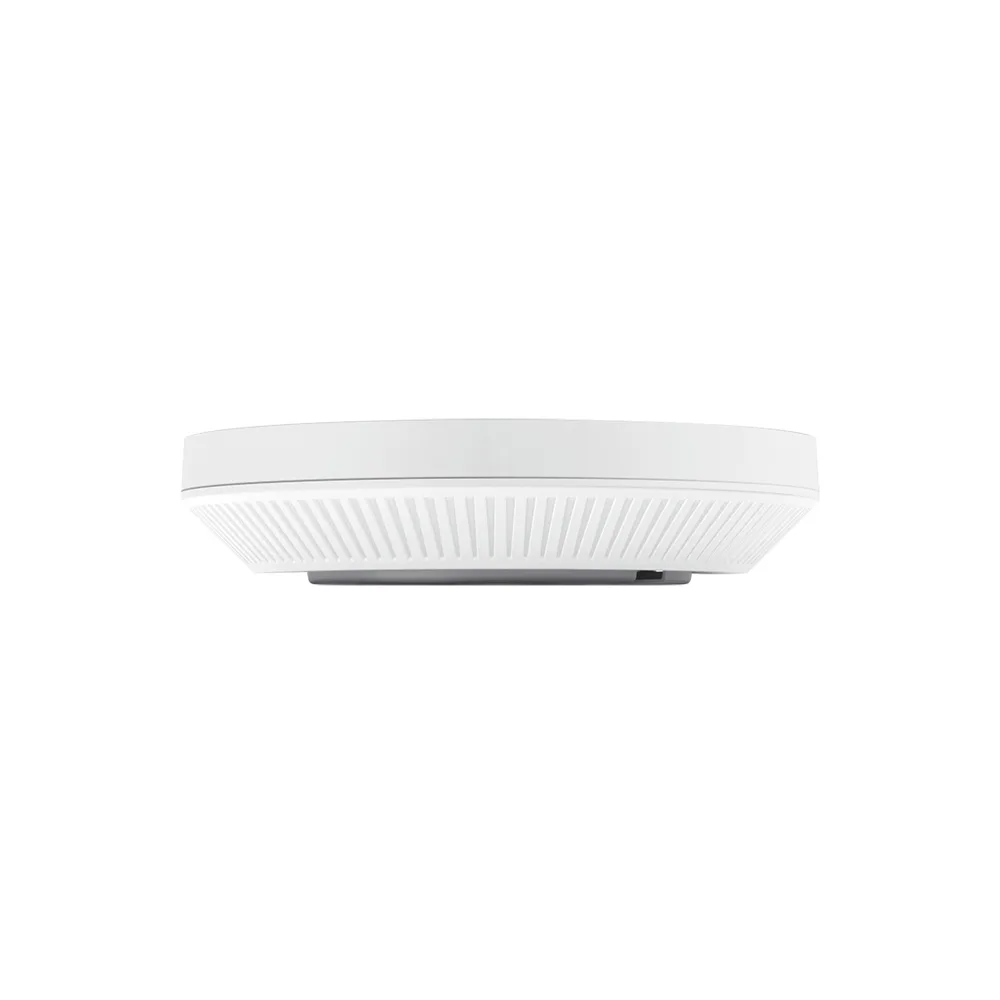

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
| Weight: | 0.50 kg |
| Dimensions: | 20x20x10 cm |
|

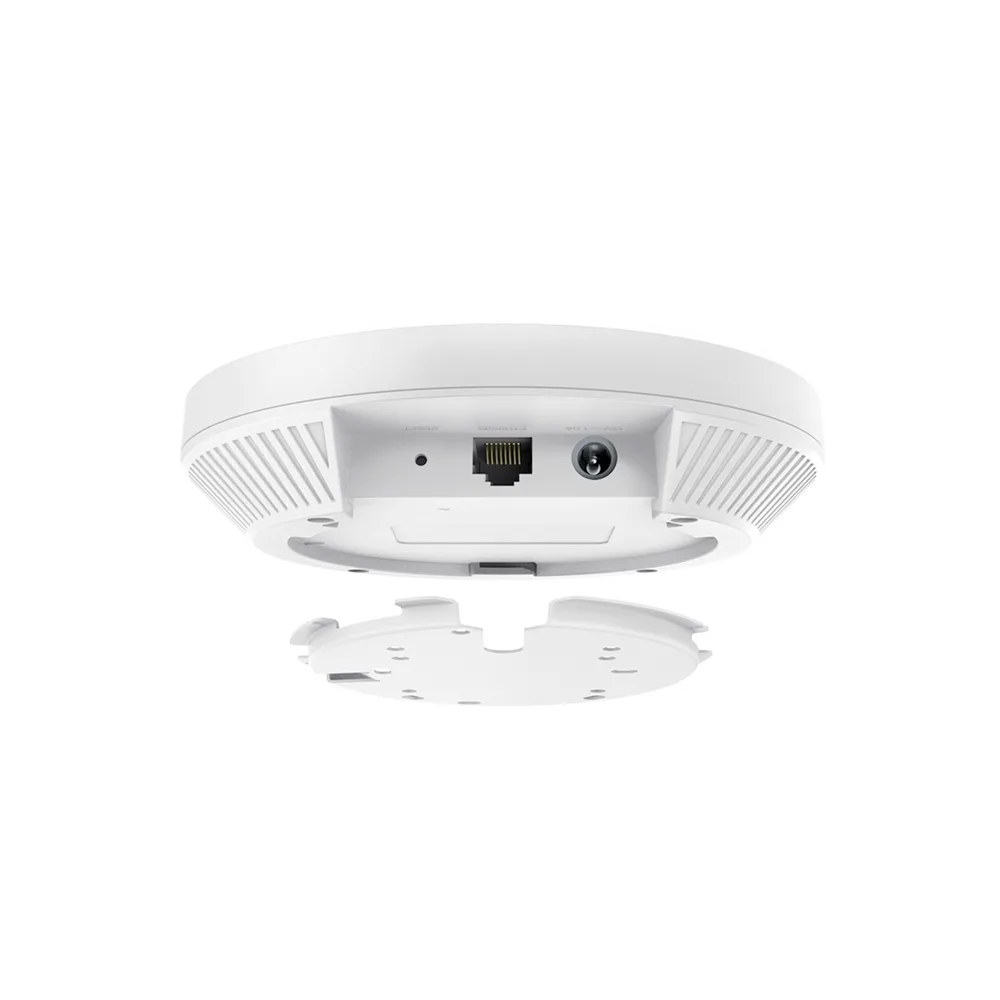

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE • 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). Note: DC adapter is not included in the package, and is sold separately. Max. Power Consumption • EU: 13.5 W • US: 14.7 W Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) Antenna Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting WIRELESS FEATURES Coverage 140㎡(1500 ft²)*** Concurrent Clients 250+** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps† Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) Management Features Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Content • EAP653 • Ceiling/Wall Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
