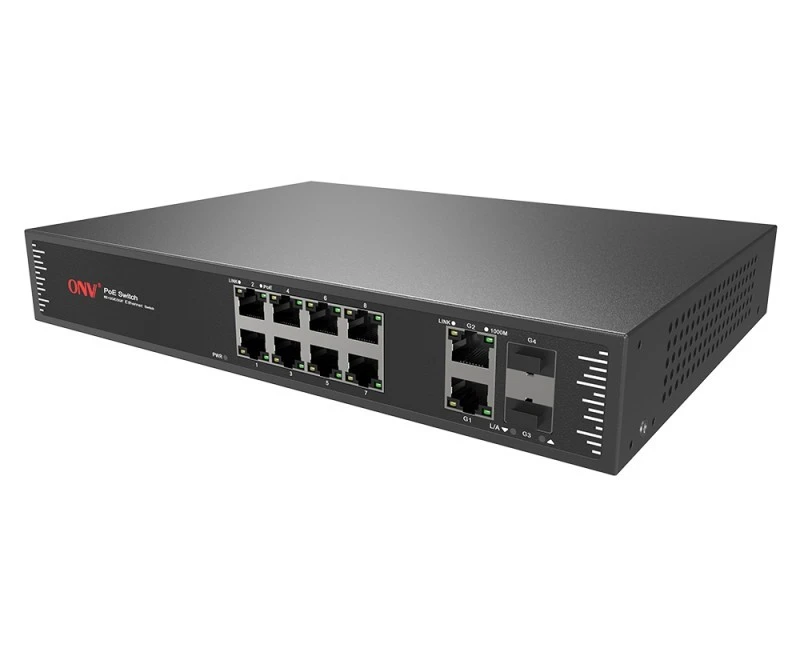

ONV Gigabit uplink 12-port PoE switch, 8x10/100Base-TX adaptive RJ45 ports, 2x10/100/1000Base-T uplink adaptive RJ45 ports | ONV-POE31128PF

The ONV-POE31128PF is a gigabit uplink PoE fiber switch independently developed by ONV. It has 8*10/100Base-TX adaptive RJ45 ports and 2*10/100/1000Base-T uplink adaptive RJ45 ports port and 2*1000Base-X uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through a network cable, to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M access, uplink gigabit TP/SFP fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Support 10/100M RJ45 port and gigabit TP/ SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION
