MYSTIQUE 240
Visualizing Your Imagination

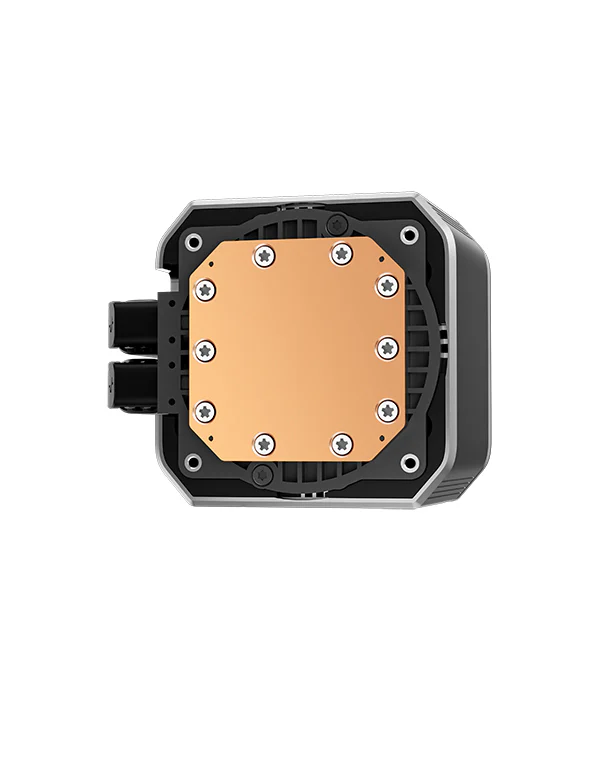

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 240 gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Net Weight | 1543 g |

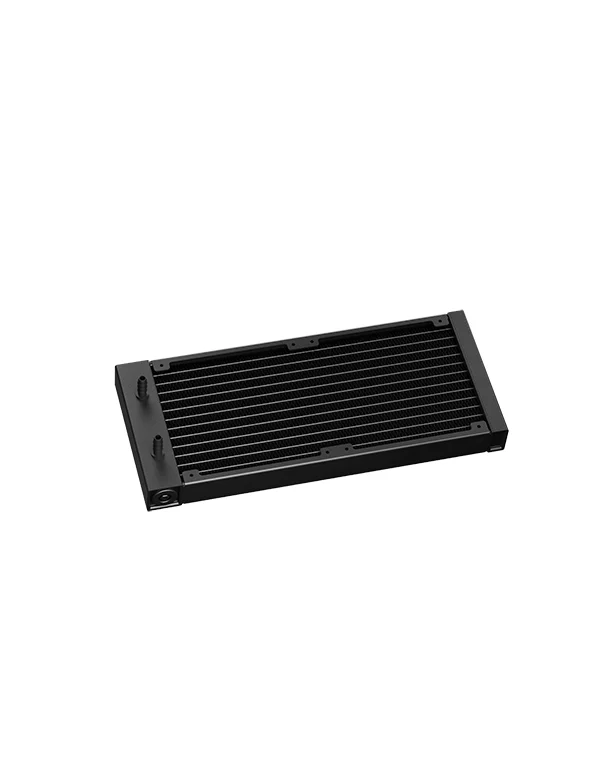

| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 93×77×66 mm(L×W×H) |
| Pump Speed | 3400 RPM±10% |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.35 A |
| Pump Power Consumption | 4.2 W |

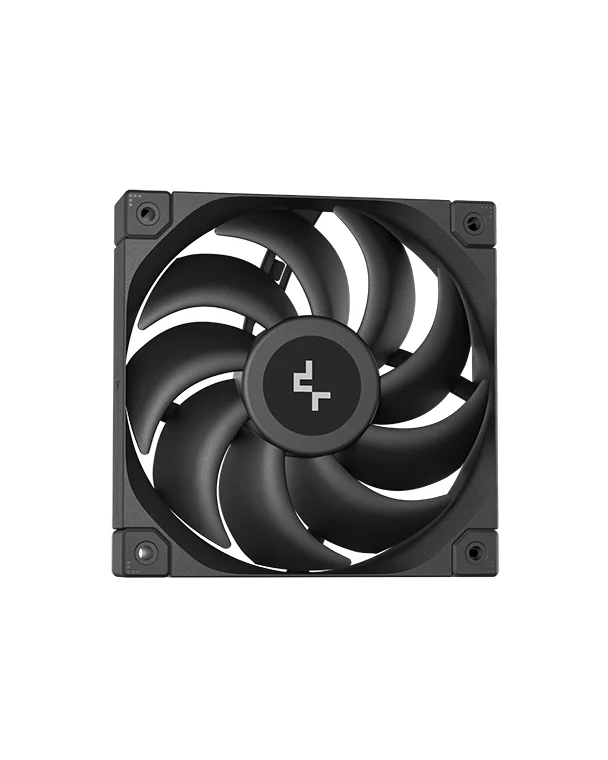

| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2150 RPM±10% |
| Fan Airflow | 72.45 CFM |
| Fan Air Pressure | 4.32 mmAq |
| Fan Noise | ≤36.49 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.3 A |
| Fan Power Consumption | 3.6 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.45 W（PUMP） |
| Display Specifications | 2.83 inch 480×640 TFT LCD |
| EAN | 6933412728771 |
| P/N | R-LX550-BKDSNC-G-1 |
Product Dimension
| Weight: | 1.70 kg |
| Dimensions: | 30x30x20 cm |
|
