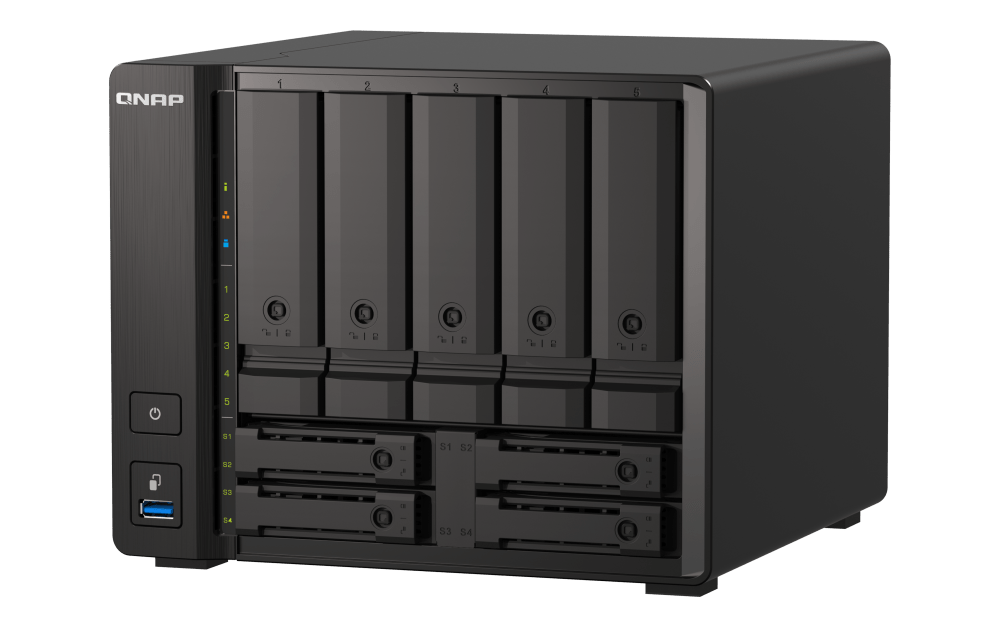

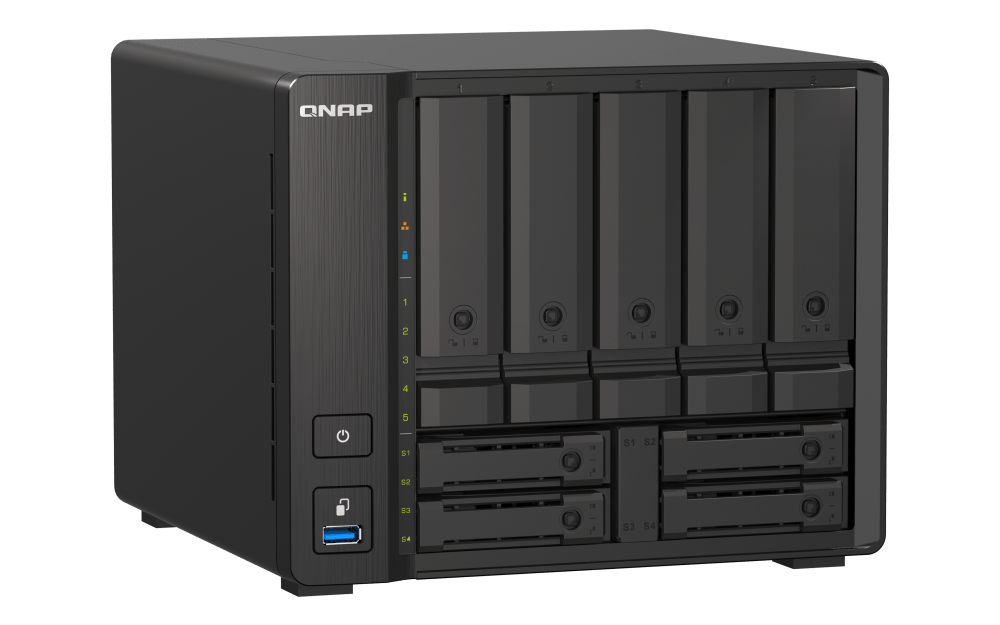

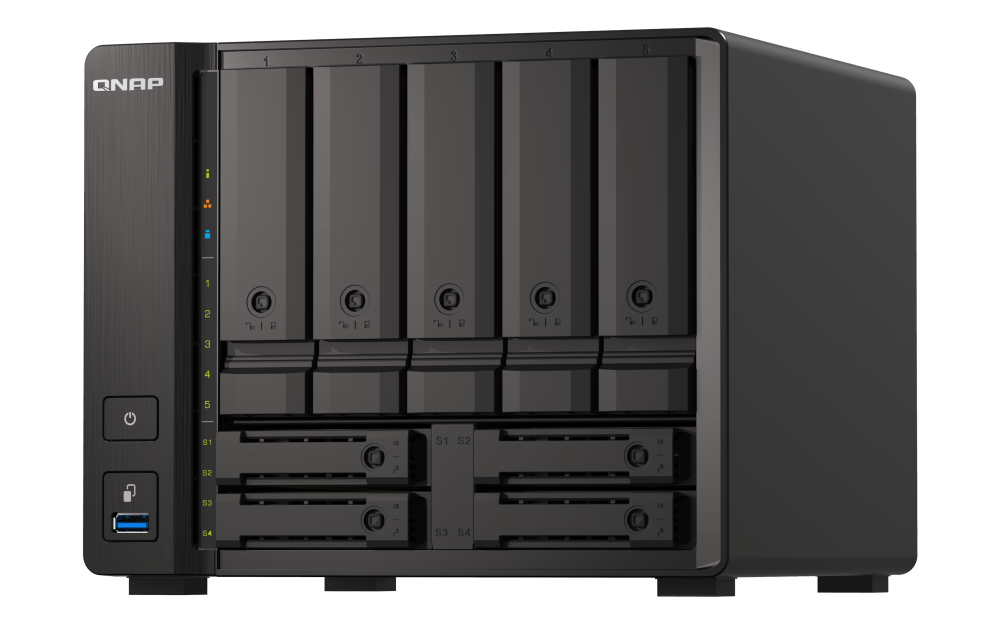

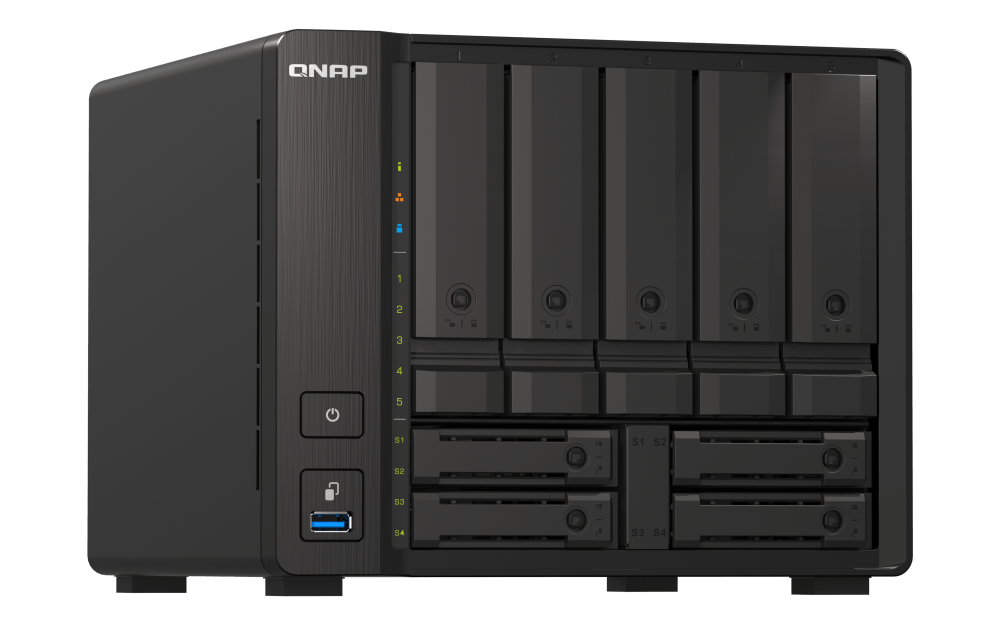

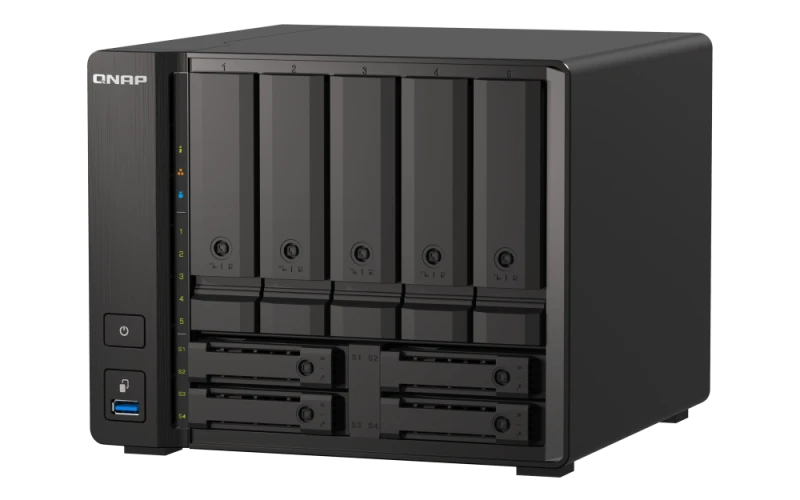

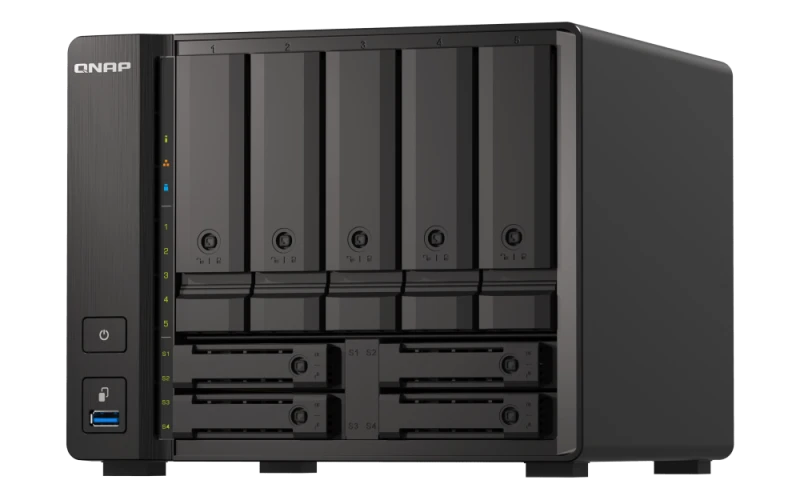

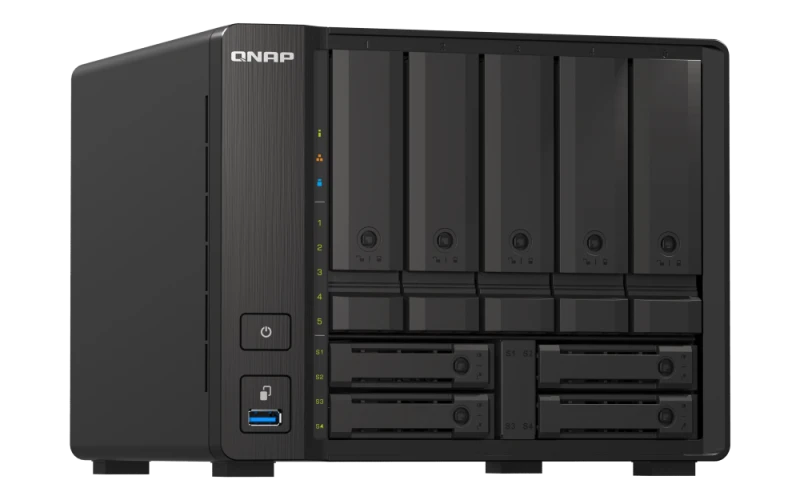

QNAP TS-h973AX 9-Bay NAS Enclosure - AMD Ryzen V1500B 2.2 GHz, 8GB DDR4 RAM, 5 x 3.5" and 2 x 2.5" SATA Drive Bays, 10GbE/2.5GbE, USB 3.2 Type-C & Type-A, QuTS Hero 4.5 OS

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.

To run memory-intensive applications such as Virtualization Station, Q'center, Qsirch, QVR Center, Qsync, or Boxafe, please purchase TS-h973AX-32G model or upgrade the memory of TS-h973AX-8G to at least 16GB to ensure smooth system operation.

Optimized SSD performance and lifespan

Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.

10GbE/2.5GbE connectivity

One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.

SaaS backup and recovery

Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).

Virtualization applications

Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.

Cloud storage gateway

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Flexible storage expansion

Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).

Discover why TS-h973AX is the best NAS for SMBs

Learn more

Dual U.2 NVMe PCIe Gen 3 x4 SSD slots for optimal I/O and low latency

The TS-h973AX has four 2.5-inch SSD slots - with slots 1 & 2 supporting both high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or economical SATA 6Gb/s SSDs. For tackling latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs that supply up to 32Gb/s bandwidth to attain optimized performance and efficiency. You can also use QNAP’s QDA adapter to replace U.2 NVMe SSDs with cost-efficient M.2 NVMe SSDs to maintain high-level performance while saving more costs.

Note: U.2 SSDs cannot be installed in the SATA drive bays (including the 3.5-inch bays and SSD Slots 3 & 4).

Coupled with QNAP’s SSD-aware features, the TS-h973AX maximizes performance with high cost-effectiveness.

Leverage the M.2 PCIe NVMe SSD to U.2 Adapter

Install one or more QDA adapter in the TS-h973AX (Slot 1 and Slot 2) to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot swappable.

• QDA-UMP: Accommodates an M.2 PCIe 3.0 x4 NVMe SSD

• QDA-U2MP*: Accommodates two M.2 PCIe 3.0 x4 NVMe SSDs

• QDA-UMP4: Accommodates an M.2 PCIe 4.0 x4 NVMe SSD (Compatible with PCIe 3.0)

* Software requirements for using QDA-U2MP:

1. NAS OS: QTS 4.5.4.1787 build 20210910 or QuTS hero h4.5.4.1800 build 20210923 (or later)

2. BIOS Q071AR10

Streamline large file transfers and video editing with 10GbE and 2.5GbE

The TS-h973AX has one 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M) port and two 2.5GbE RJ45 (2.5G/1G/100M) ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches, 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to build a budget-friendly high-speed network environment for productive team collaboration.
