CPU Model

AMD Ryzen V1500B

CPU Quantity

1

CPU Core

4

CPU Architecture

64-bit

CPU Frequency

2.2 GHz

Hardware Encryption Engine

Memory

System Memory

4 GB DDR4 ECC UDIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays

16

Maximum Drive Bays with Expansion Unit

28 (RX1217 x 1)

Drive Type (See all supported drives)

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Hot Swappable Drive*

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

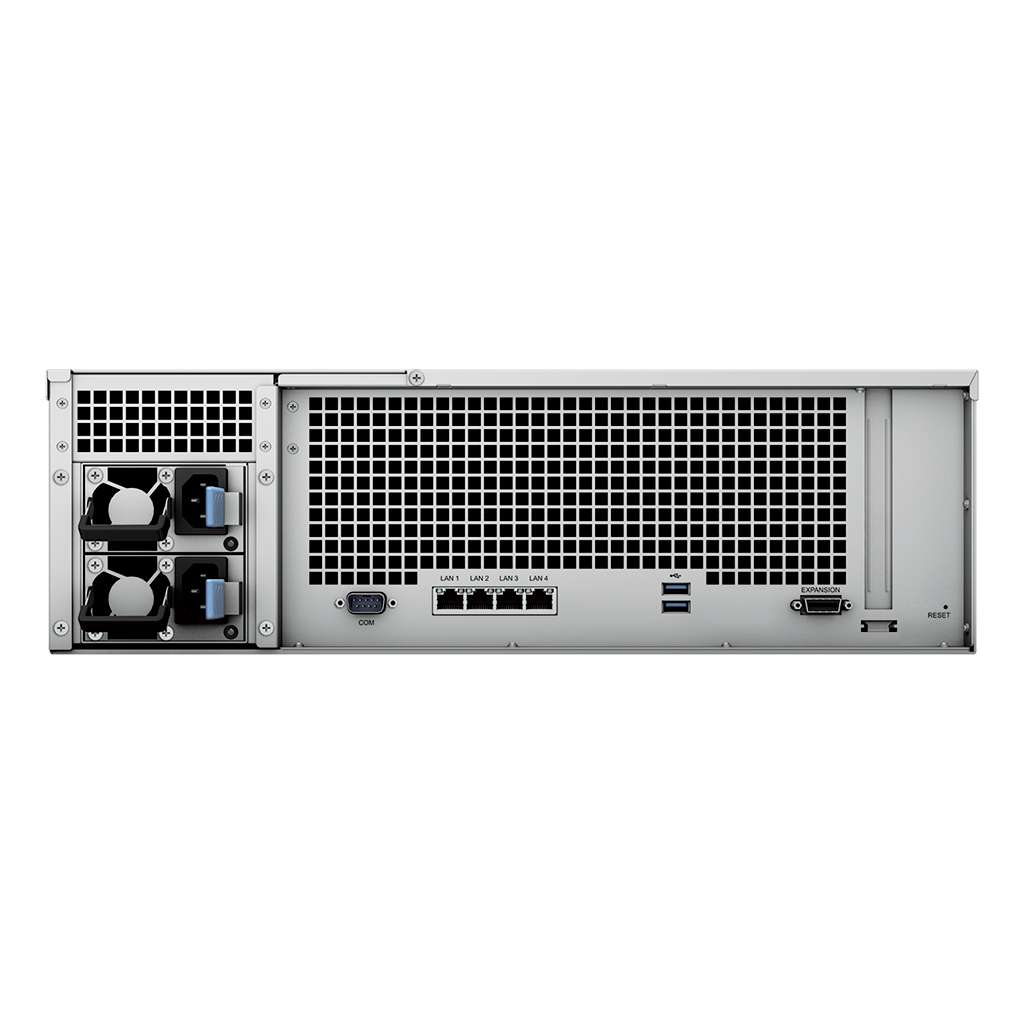

External Ports

RJ-45 1GbE LAN Port

4

USB 3.2 Gen 1 Port

2

Expansion Port

1

Expansion Port Type

Infiniband

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

Appearance

Form Factor (RU)

3U

Size (Height x Width x Depth)

132.3 mm x 482 mm x 656.5 mm

Weight

17.1 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

The rail kit is sold separately

Others

System Fan

80 mm x 80 mm x 3 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*

53.5 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

550 watts

Redundant Power Supply

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

97.54 watts (Access)

49.57 watts (HDD Hibernation)

British Thermal Unit

332.61 BTU/hr (Access)

169.03 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

FCC

CE

BSMI

VCCI

RCM

EAC

CCC

KC

UL

Warranty

3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.

Environment

RoHS Compliant

Packaging Content

Main Unit X 1

Accessory Pack X 1

AC Power Cord X 2

Quick Installation Guide X 1

Optional Accessories

DDR4 ECC UDIMM: D4EU01-4G/D4EC-2666-8G/D4EC-2666-16G

Expansion Units: RX1217/RX1217RP

Enterprise Series 3.5" SATA HDD: HAT5300 Series

Plus Series 3.5" SATA HDD: HAT3300 Series

Enterprise Series 2.5" SATA SSD: SAT5200 Series

M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1

M.2 SSD Adapter Card: M2D20

25GbE Network Interface Card: E25G30-F2

10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1

Rail Kit Sliding: RKS-02

Notes

All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
