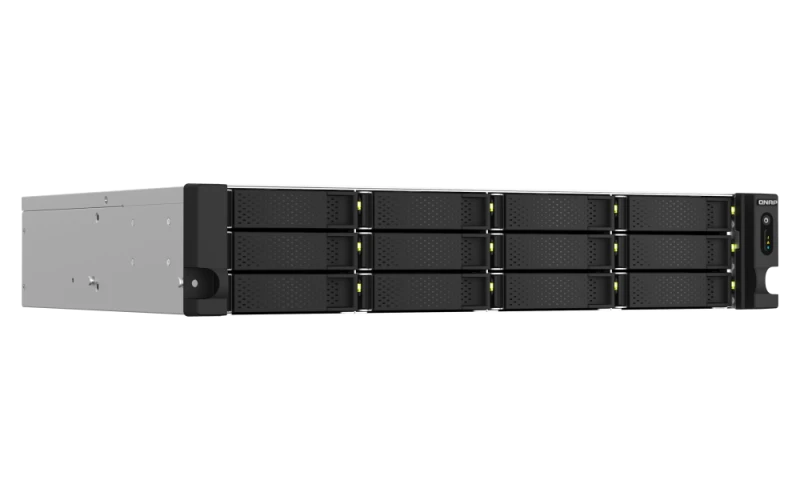

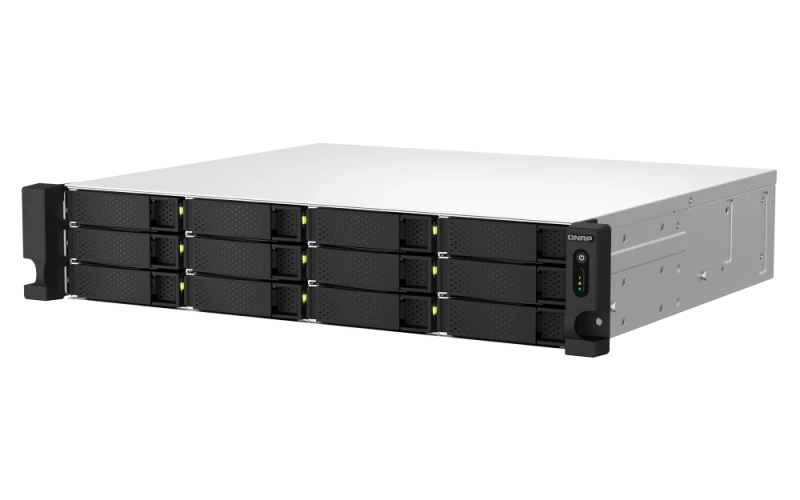

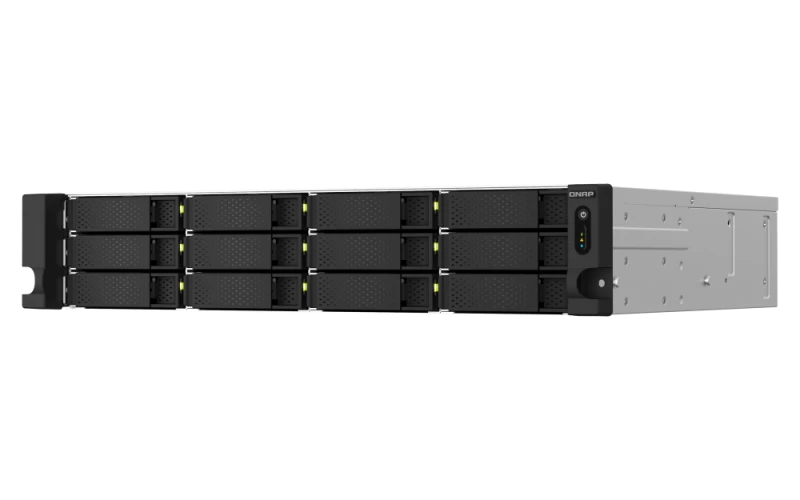

Qnap 12 Bay TS-1264U-RP-4G NAS Server - Intel Celeron N5095/N5105 Processor, 2U Rackmount, 2.5 GbE Connectivity, PCIe Expansion, 4GB DDR4 Memory, 3.5-inch SATA 6Gb/s Drive Bay

Powered by an Intel® Celeron® N5095 quad-core processor (burst up to 2.9GHz), the TS-1264U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI™ output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-1264U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-1264U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-1264U-RP also features a redundant power supply to ensure maximum system uptime.

The TS-1264U-RP uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)

Users can purchase the optional RAIL-S01 short rail kit to deploy the TS-1264U-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.

2.5GbE connectivity

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

PCIe expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-1264U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

Snapshots

Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

License-free virtualized environment

Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

Flexible expansion

Scale your storage capacity to fit growing data needs by connecting QNAP’s expansion units.

Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz, 4 GB SODIMM DDR4 (1 x 4 GB), redundant power supply

Quad-core high performance

The TS-1264U-RP is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE

The TS-1264U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks

The TS-1264U-RP is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
