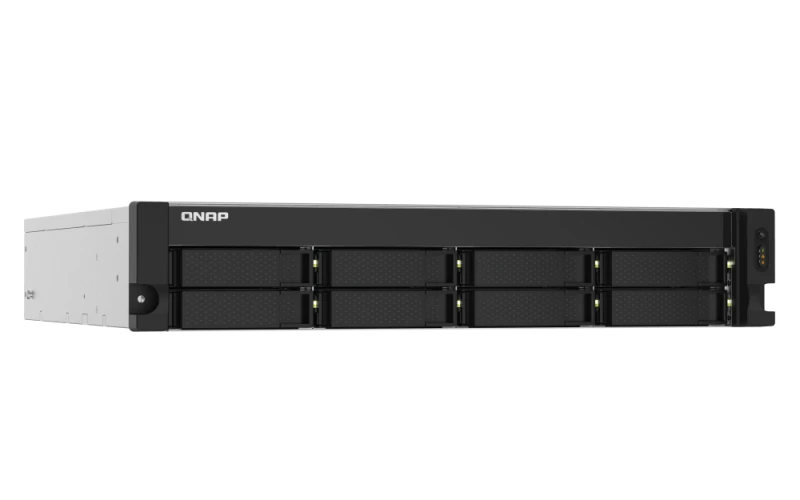

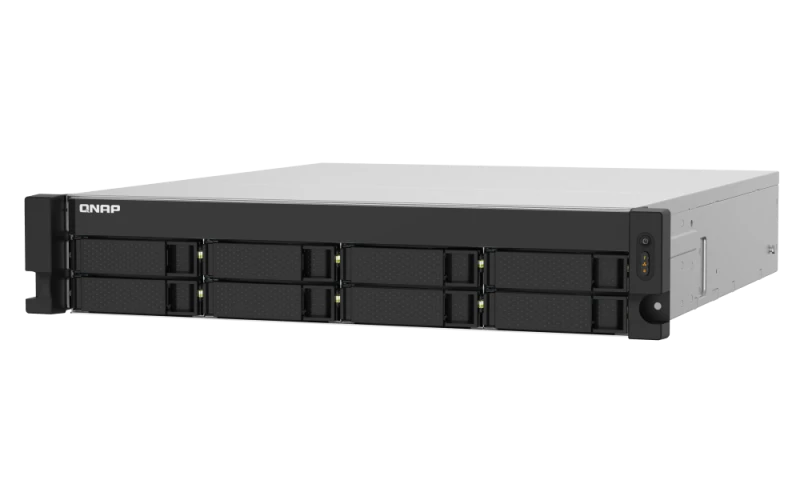

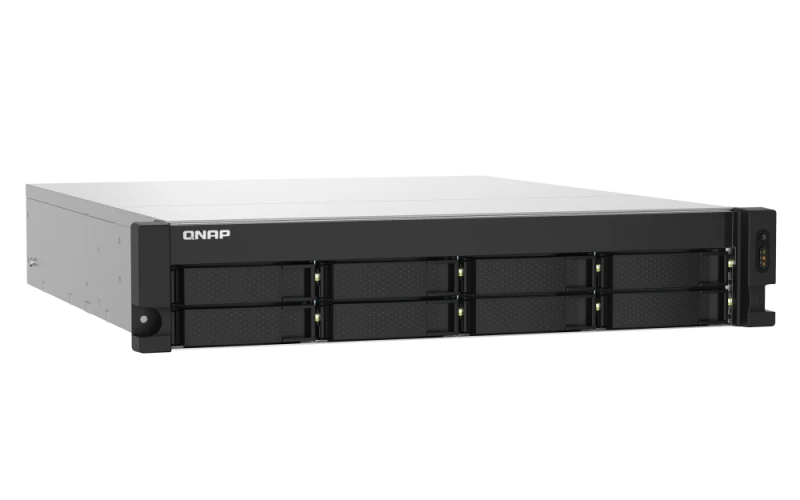

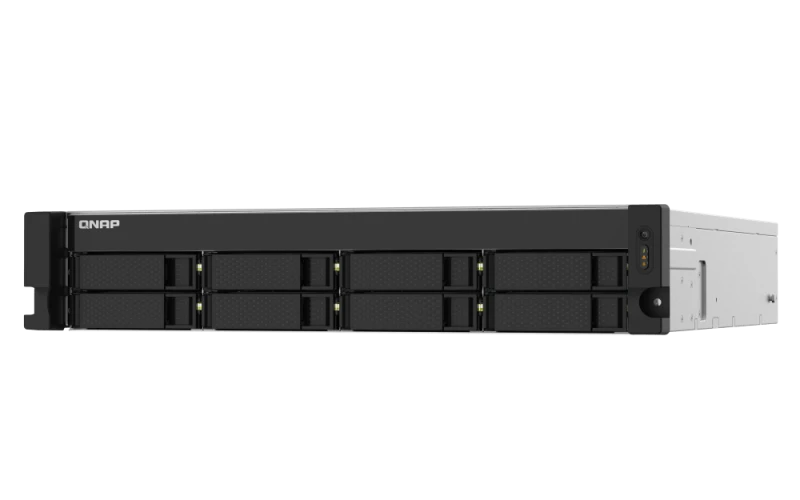

QNAP TS-832PXU-4G 8-Bay - AL324 Quad Core Rackmount NAS, With 250W Redundant, 1.7 GHz, 4GB DDR4 UDIMM RAM (Max 16GB), SATA 6Gb/s, 2x 10GbE SFP+, 1x PCIe Gen 2x2 Slot, Single Power Supply

With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU supports file backup and synchronization, secure snapshot protection, and Google™ Workspace and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.

1

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.

2

HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.

3

Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®.

4

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

5

Expand the application potential of the TS-832PXU by installing a compatible PCIe card.

6

Increase the storage capacity of the TS-832PXU with QNAP TR RAID expansion enclosures or TL JBOD.

Available Models

TS-832PXU-4G

 TS-832PXU-4G

AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor, 4 GB UDIMM DDR4 (1 x 4 GB)

Higher performance x faster throughput

The TS-832PXU is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Windows File Transfer (2 x 2.5 GbE, 10 GB file)

Upload

581 MB/s

Download

488 MB/s

Windows File Transfer (2 x 10 GbE, 10 GB file)

Upload

649 MB/s

Download

2104 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:

NAS: TS-832PXU

OS: QTS 4.4.3

Volume Type: 8 x Samsung 850 Pro 512 GB SSD (RAID 5), thick volume

Client PC: Windows 10, Intel Core i7-6700 3.4 GHz, 64 GB RAM, 10 GB file transfer

IOmeter: RAM*4, 30-sec ramp up time, 3-min seq. run time, 2 workers, 64-outstanding

Virtualization Certifications Supported by TS-832PXU

Check QNAP NAS with Support for Virtualization application

Supports AES-128-GMAC for SMB signing acceleration

SMB signing (also known as security signatures) is a security mechanism in the SMB protocol. For business applications that demand high-level security, SMB signing helps enhance file sharing security by protecting against interception attacks. However, SMB signing can also negatively impact data transmission performance. QTS 5.1.0 supports AES-128-GMAC signing acceleration (only in Windows Server 2022 and Windows 11 clients) that not only greatly increases data signing efficiency over SMB 3.1.1 but also enhances the CPU utilization of the NAS system - providing the best balance of security and performance.

x86 64-bit NAS

2X Faster

AES-CMAC: 619 MB/s Read

AES-128-GMAC: 1238 MB/s Read

ARM 64-bit NAS

10X Faster

AES-CMAC: 68 MB/s Read

AES-128-GMAC: 738 MB/s Read

Test environment:

Crystal Disk Mark 1MB throughput

Client: Windows Server 2022 (AMD EPYC 7232P 3.0GHz, DDR4 128GB) with 10GbE NICs

x86 NAS: TS-h1887XU-RP-E2336-32G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 870 EVO 1TB, RAID 50, onboard Aquantia X550 10GbE NIC

ARM NAS: TS-1232PXU-RP-4G, QTS 5.1.0 (GMAC), QTS 5.0.1 (CMAC), Samsung 860PRO 512GB, RAID 5, onboard Annapurna SFP+ 10GbE NIC

Upgrade your network to increase team efficiency

QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

Learn More: Network switches, Network Expansion Cards

Boost NAS performance with SSDs

As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Balance performance and capacity

Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.

Learn more：SSD caching, Qtier auto-tiering

Extend SSD lifespan

SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.

Learn more：SSD features

Multi-point file backup, access and sync

HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

Learn More: HBS (Hybrid Backup Sync), Qsync cross-platform file sharing

Easily find and automatically organize files and photos

The TS-832PXU provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.

File search

Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.

Learn More: Qsirch

Photo management

QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.

Learn More: QuMagie

Auto archiving

Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

Learn More: Qfiling

Secure Google™ Workspace and Microsoft 365® backup

The convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.

Learn More: Boxafe SaaS Backup

Low Latency Access to Cloud Data with Cloud Storage Gateways

By deploying cloud storage gateways and enabling local caching on the TS-832PXU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount File-Based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

Learn More: HybridMount

VJBOD Cloud Block-Based Cloud Gateway

VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.

Learn More: VJBOD Cloud

Flexibly expand storage capacity whenever needed

The storage capacity of the TS-832PXU can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU can also be used to expand the storage space of other QNAP NAS.

Learn More: Expansion units, Storage expansion compatibility, VJBOD (Virtual JBOD)

PCIe expandability for greater application potential

The TS-832PXU includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.

Network Adapter

Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.
