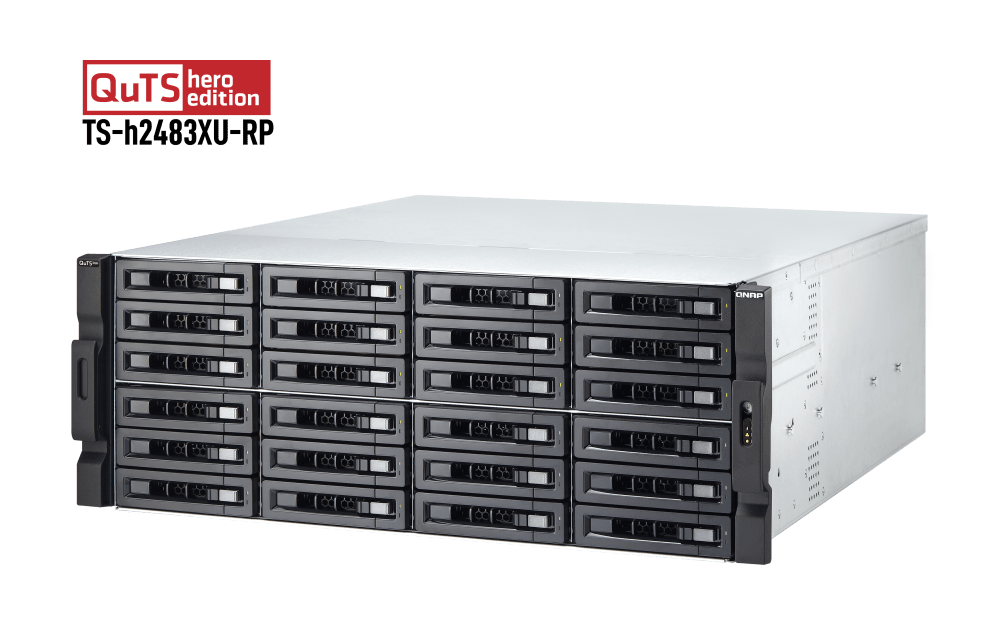

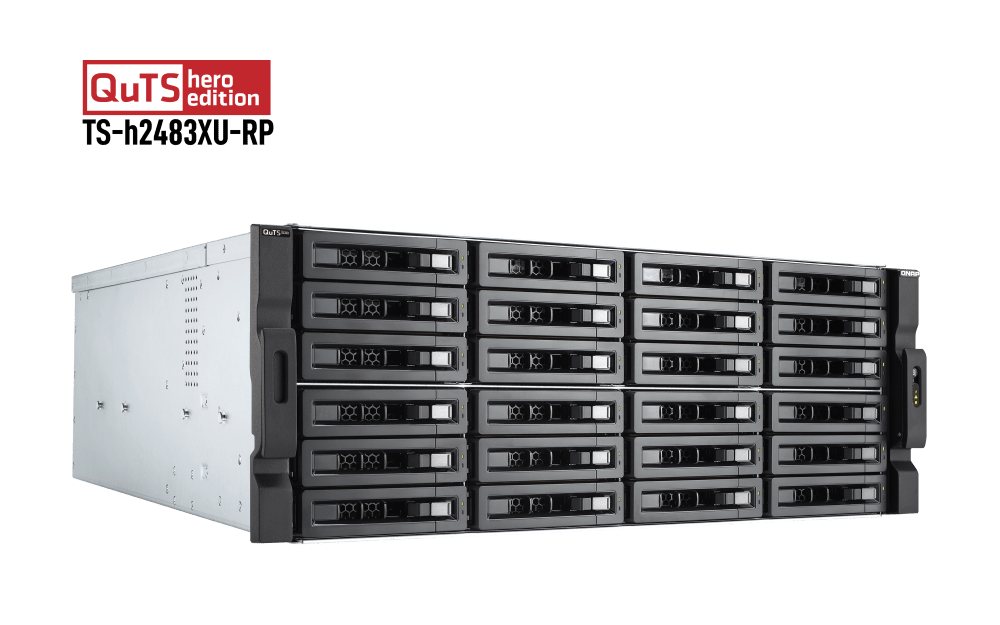

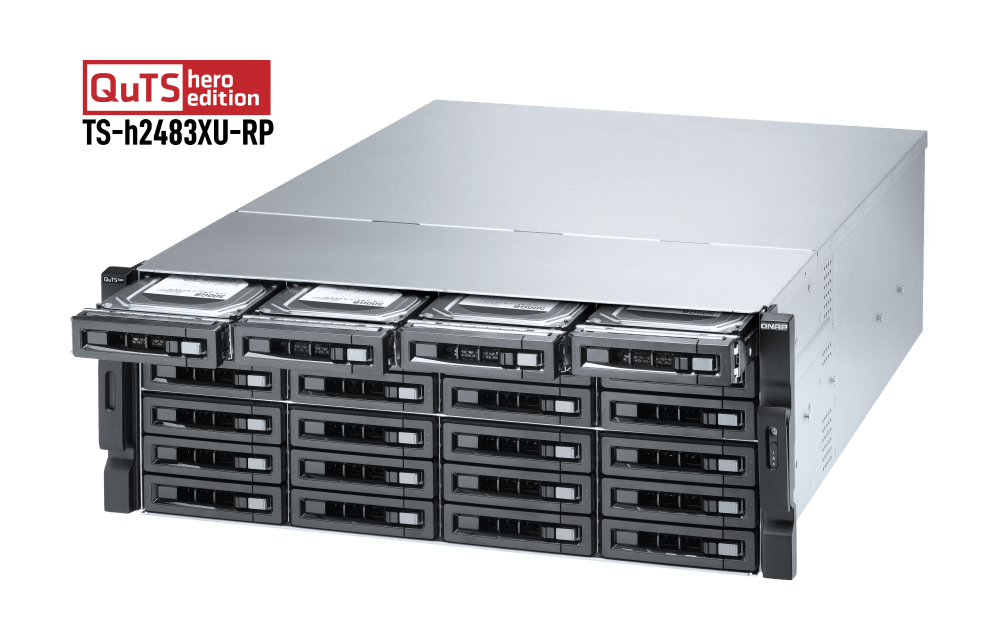

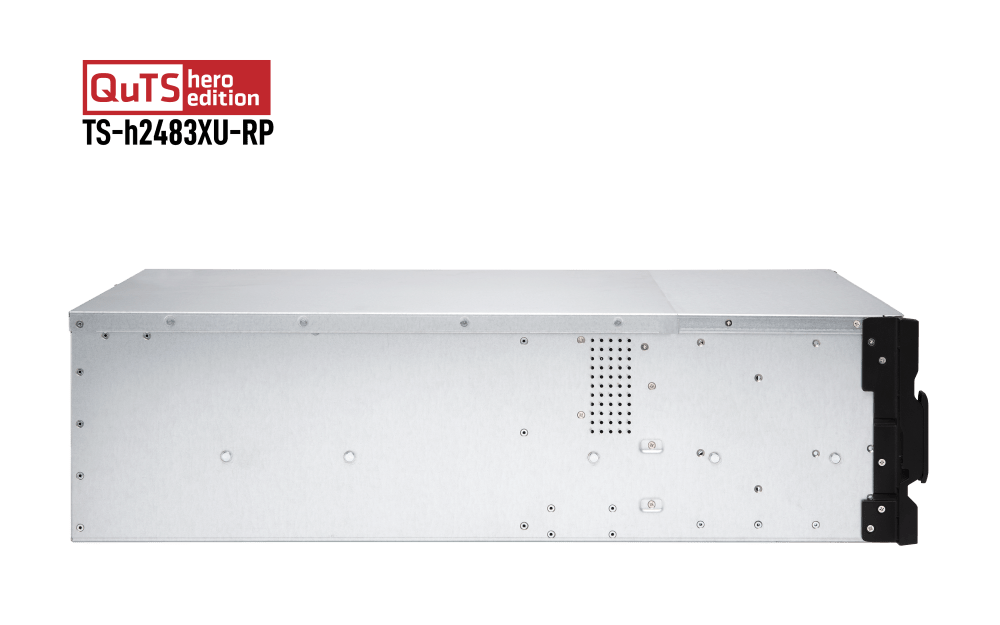

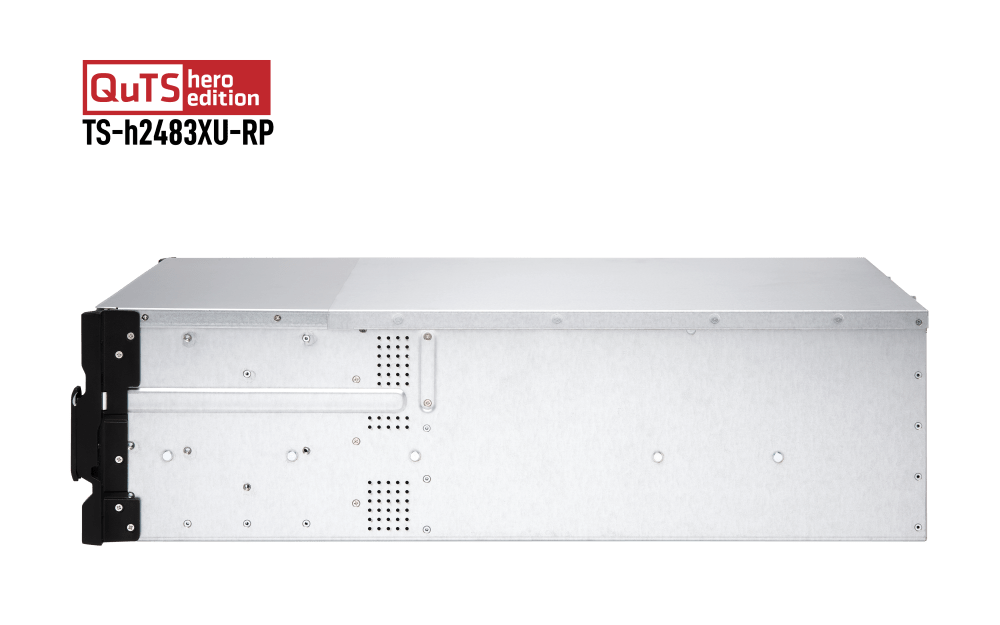

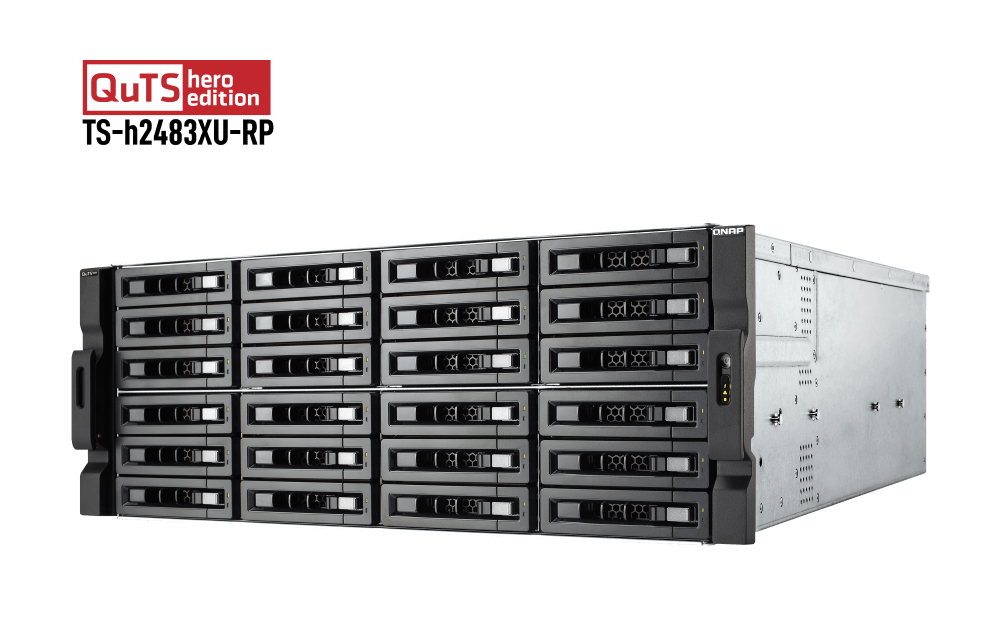

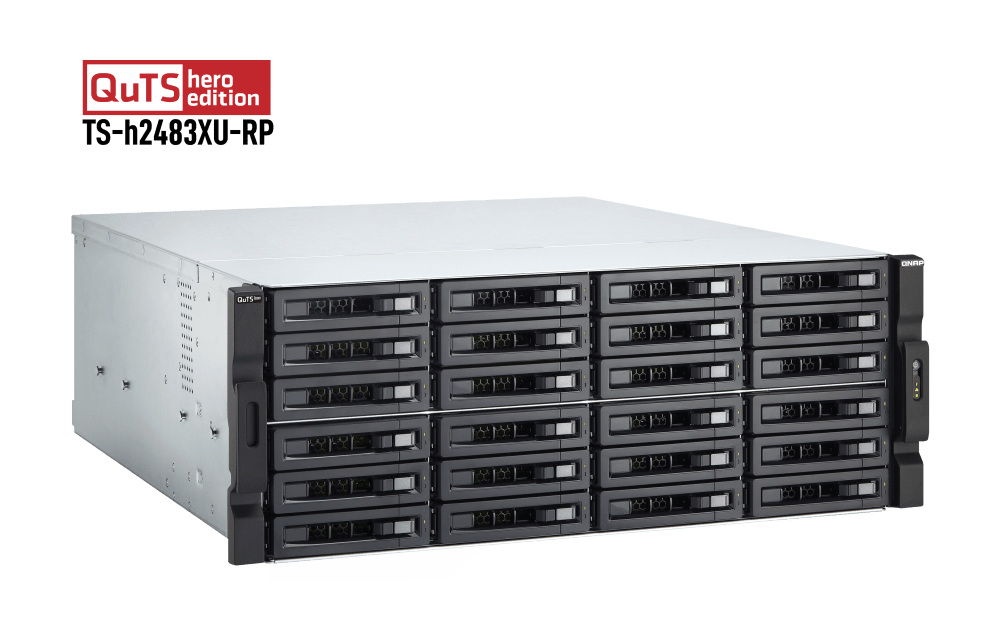

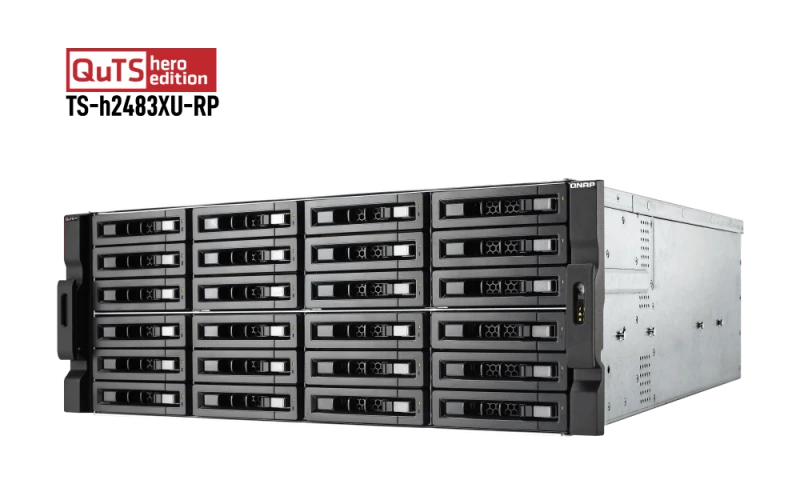

The QuTS hero NAS TS-h2483XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h2483XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h2483XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
NBASE-T Ethernet
Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ SmartNIC for bandwidth-demanding applications.
Flexible PCIe expansion
PCIe expandability allows for installing 10/25/40 adapters, QM2 cards, or Fibre Channel cards to increase application performance.
SSD cache acceleration
SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
Virtualization applications
Supports virtualization storage for VMware®, Microsoft® Hyper-V®, Windows Server® 2019, and can natively host virtual machines and containers.
On-demand applications
Built-in App Center includes feature-rich apps for expanding potential NAS applications.
Intel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h2483XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h2483XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.
Server-grade hardware: Sturdy and expandable
The TS-h2483XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.

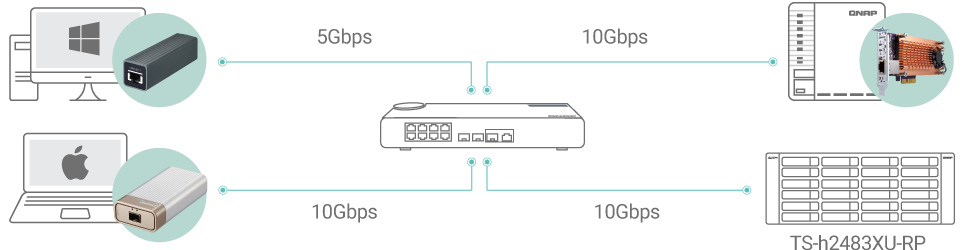

10GbE connectivity for high-speed data transfer

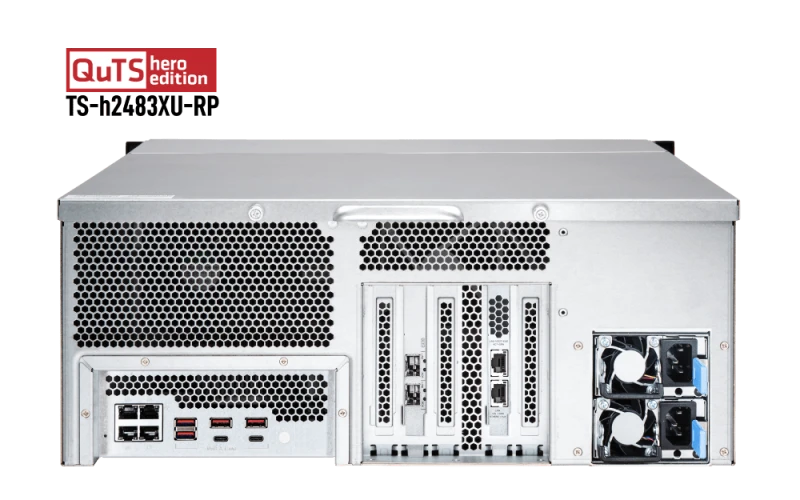

The TS-h2483XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Abundant I/O capability with PCIe expansion
The TS-h2483XU-RP features 5 PCIe slots that enable using numerous expansion cards for greater application potential.
Note: 3U, 4U rackmount models use high-profile graphics cards.
| Weight: | 28.00 kg |
| Dimensions: | 180x60x50 cm |
|
CPU Intel® Xeon® E E-2136/E-2236 6-core / 12-thread processor CPU Architecture 64-bit x86 Floating Point Unit Encryption Engine (AES-NI) System Memory 128 GB UDIMM DDR4 ECC (4 x 32GB) Maximum Memory 128 GB (4 x 32 GB) Memory Slot 4 x UDIMM DDR4 Flash Memory 5GB (Dual boot OS protection) Drive Bay 24 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable SSD Cache Acceleration Support GPU pass-through Gigabit Ethernet Port (RJ45) 4 10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port Wake on LAN (WOL) Jumbo Frame PCIe Slot 5 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x4 (CPU) Slot 3: PCIe Gen 2 x4 (PCH) Slot 4: PCIe Gen 3 x8 (CPU) Slot 5: PCIe Gen 2 x4 (PCH) Slot 2 and slot 4 are preinstalled with 10GbE network adapters. Card dimensions for PCIe slot 1：260 x 131.15 x 28.76 mm / 10.24 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 2：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 3：300 x 131.15 x 28.76 mm / 11.81 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 4：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 5：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps 4 x Type-A USB 3.2 Gen 2 10Gbps Form Factor 4U Rackmount LED Indicators HDD 1-24, Status, LAN, storage expansion port status Buttons Power, Reset Dimensions (HxWxD) 176.2 × 441.6 × 630.2 mm Excludes ear hook and the protruding part of the Power Supply Unit. Weight (Net) 22.42 kg Weight (Gross) 29.2 kg Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 800W(x2), 100-240V Power Consumption: Operating Mode, Typical 173.4 W Tested with drives fully populated. Fan System fan: 3 x 80mm, 12VDC System Warning Buzzer Standard Warranty 3 Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000 |
