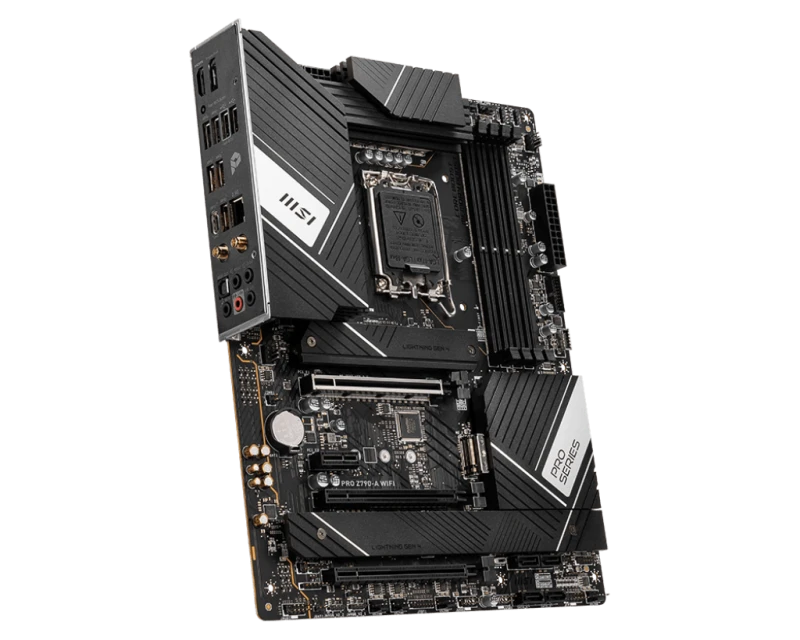

MSI PRO Z790‑A WIFI ATX Motherboard – LGA 1700, Intel Z790, DDR5 7200 (OC), PCIe 5.0 x16, 4×M.2, 6×SATA, 2.5 Gb LAN, Wi‑Fi 6E

Premium MSI PRO Z790‑A WIFI ATX motherboard, Intel Z790 chipset, supports 12th–14th Gen Core/Pentium/Celeron CPUs, DDR5 up to 7200 MHz (OC), PCIe 5.0 x16, 4×Gen4 M.2, 6×SATA 6 Gb/s, dual‑channel 128 GB RAM, Intel 2.5 GbE LAN, Wi‑Fi 6E, Bluetooth 5.2, USB 3.2 Gen2x2 Type‑C 20 Gb/s — ideal for performance builds, multitasking, and fast storage/ networking.

PRO Z790-A WIFI

1. Supports 12th/13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
2. Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
3. Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
4. Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
5. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
6. Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
7. Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
8. 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
9. AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,

HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

a

AUDIO BOOST 5

1. HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
2. HIGH QUALITY AUDIO CAPACITORS
3. HIGH QUALITY AUDIO JACKS WITH S/PDIF
4. ISOLATED AUDIO SIGNAL
5. DE-POP PROTECTION

1. MYSTIC LIGHT
2. SYNCHRONIZE

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.
