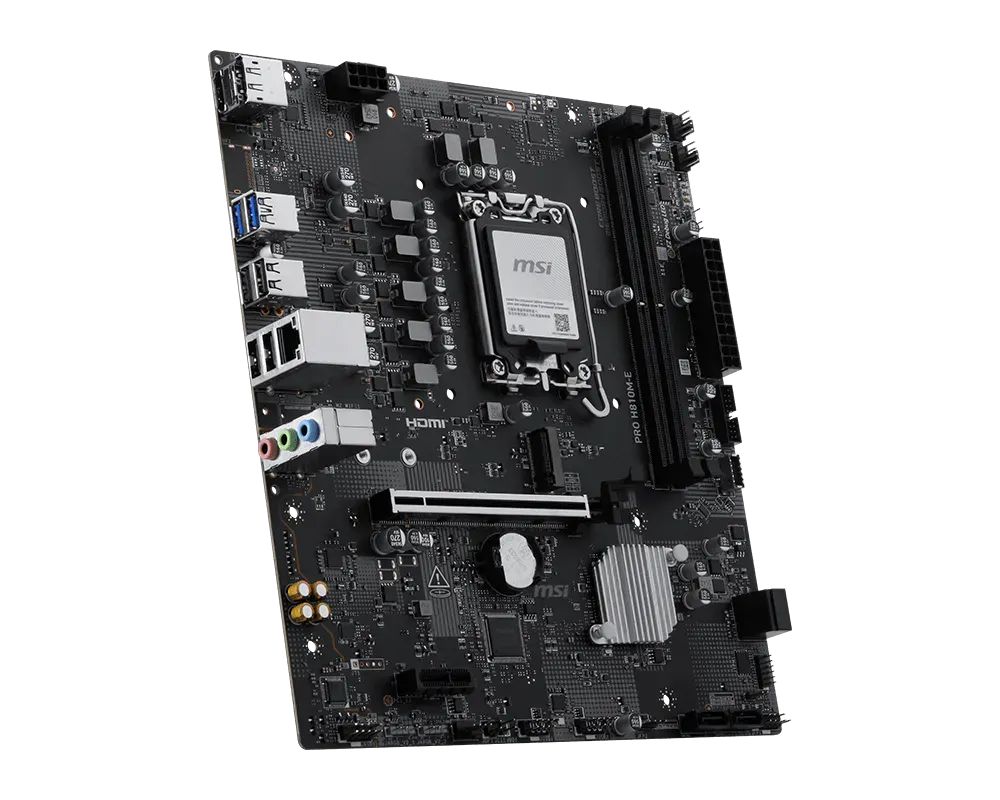

MSI PRO H810M-E Intel Core Ultra LGA1851 Micro-ATX Motherboard

Model & Form Factor

MSI PRO H810M-E | Micro-ATX (mATX, 220 x 243.84 mm)

Chipset & CPU Socket

Intel® H810 | LGA 1851 (Supports Intel® Core™ Ultra Processors - Series 2)

Memory (RAM)

2x DDR5 UDIMM (Max 128GB) | Up to 6400 MT/s

Supports CUDIMM & Dual-Controller Dual-Channel

Expansion Slots

1x PCIe 5.0 x16 (From CPU)

1x PCIe 4.0 x1 (From Chipset)

Storage Configuration

1x M.2 PCIe 4.0 x4 (From Chipset, supports 2280/2260)

4x SATA 6G

Networking

Realtek® 8125D 2.5Gbps LAN

Video Outputs

1x HDMI 2.1 (4K@60Hz) | 1x DisplayPort 1.4 (4K@60Hz)

USB Ports (Rear Panel)

2x USB-A (5Gbps) | 4x USB 2.0

Internal USB Headers

1x USB-C (5Gbps) | 2x USB-A (5Gbps) | 4x USB 2.0

Audio Interface

Realtek® ALC897 Codec (7.1-Channel HD Audio)

Internal Headers / Misc

EZ Debug LED (x4) | EZ Memory Detection LED | 3x Addressable V2 RGB headers | 3x Fan Headers (1x CPU, 2x System)
