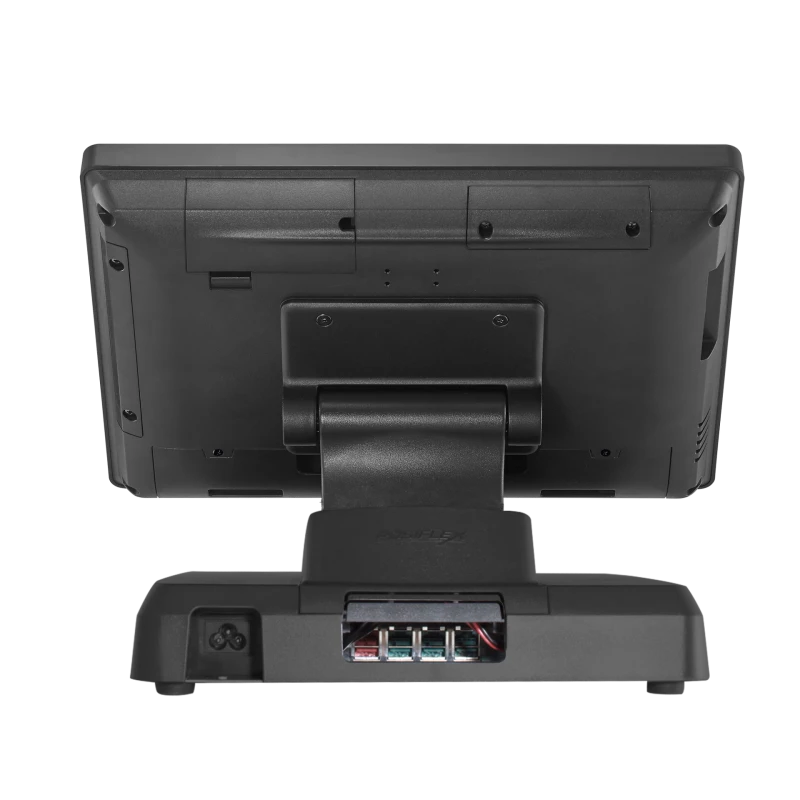

Equipped with an adjustable base, PS-3616-G2 enables the ultimate flexibility for space-limited environments.
By separating a full set of ports into the top of the terminal, PS-3616-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.
Built with a 15.6" PCAP wide touchscreen display and powered by Intel® Elkhart Lake processor, PS-3616-G2 is designed to run today's demanding POS applications.
| Weight: | 5.00 kg |
| Dimensions: | 38 x 26x 30 cm |
| System-Configuration | PS-3616-G2 |
| Processor | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| System Memory | DDR4 SO-DIMM x 1, max. 32GB |
| Storage Device | M.2 connector x 1 (support SATA signal only) |
| RAID Function | N/A |
| Intel vPro Support | N/A |
| TPM | TPM 2.0 |
| Power Supply | 12V/60W |
| OS Support | Windows 10 IoT LTSC |
| OS Support | Windows 11 IoT LTSC |
| Display & Touch | |
| Display & Touch | LCD 15.6" TFT LCD |
| Resolution | 1366 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | via optional conversion cable through service window |
| Standard USB Port | USB 3.0 x 2+ USB 2.0 x 3 |
| PoweredUSB Port | Optional 24V x 1 + 12V x 3 via GEN8 base |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1 (12V support for Posiflex monitors) |
| CR Port | RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer |
| PS2 Port | via optional conversion cable through service window |
| UPS Port | N/A |
| Audio | Buzzer x 1; Optional internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| Dimension | |
| Dimension | Dimension (W x D x H in mm) 372 x 252.7 x 291.4 |
| Weight (N. W. in kg) | 4.7 |
| Environmental | |
| Environmental | Operating Condition 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition -20°C - 70°C, 10%RH - 90%RH | Built-In Options |
| WiFi module | M.2 WiFi/BT module |
| Camera Module | N/A |
| Printer Module | N/A |
| AG Glass | N/A |
| Attachment Options | |
| POS Monitor Non-touch TFT USB LCD | Line Display 2 x 20 rear-mount VFD customer line display; |
| 2 x 20 rear-mount LCD customer line display; | 7" color LCD graphical line display |
| External UPS Pack for RT Series N/A | Attachment MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad |
